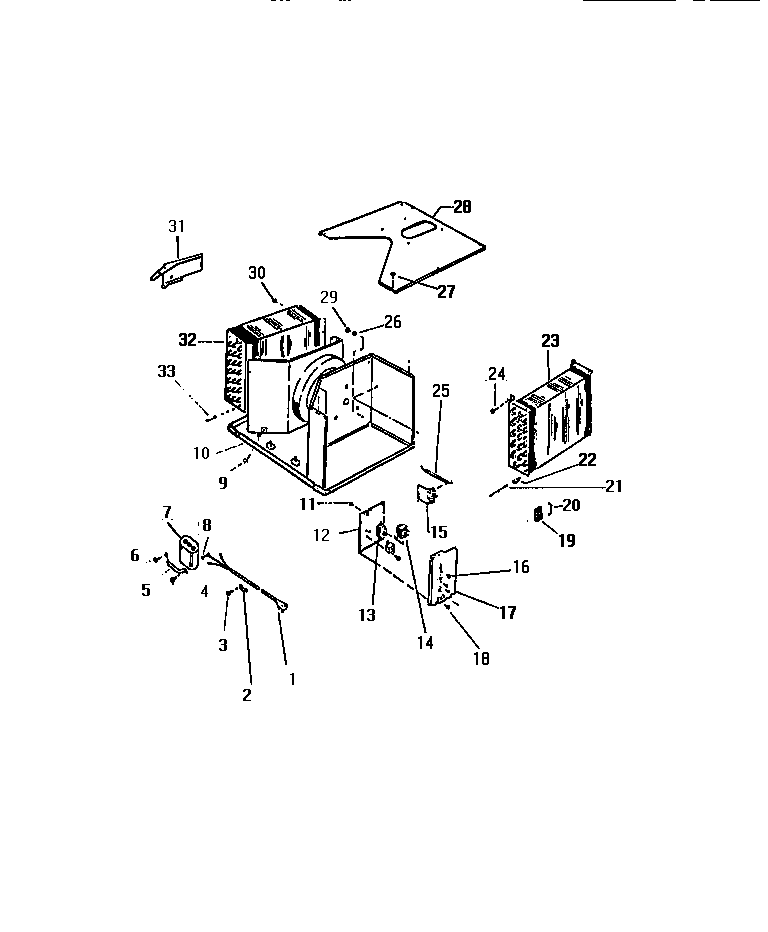

MH413C1QA 03 – CONTROLS

Products

Position	Product
*17890	WCI G518133-07
*17884	WCI G518429
*17885	WCI G518497-02
*17888	WCI G157176
*17887	WCI G149308-28
*17889	WCI G518133-06
1	CORD – SERVICE
2	CLAMP – SERVICE CORD
3	SCREW-CLAMP
4	SCREW-STRAP
5	STRAP, CAPACITOR
7	CAPACITOR (NON-ILLUSTRATED)
10	WCI G519648
11	154419403 Frigidaire Dishwasher Screw
12	WCI G514861
13	WCI G506369
14	SWITCH-5 POS
15	WCI G506434
16	SCREW-CNTL (6)
17	PANEL, CONTROL MOUNTING
19	WCI G136662
20	SPACER-RETAINER
21	WCI G144044-18
22	TUBE – CONNECTOR EVAP.
23	WCI G516370
25	WCI G506431
26	WCI G99148
28	WCI G519233
29	SCRW-NO. 8 X 3/8 (4)
30	WCI G521208
31	WCI G160146
32	CONDENSER
33	STRAINER-FILTER
