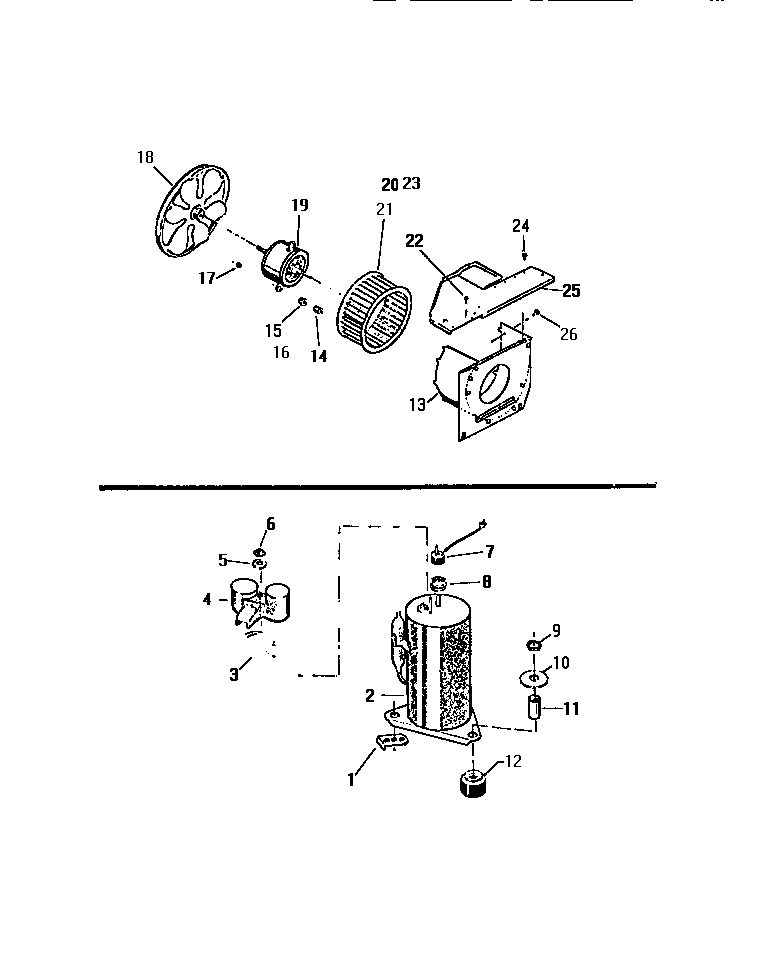

MH413C1QA 04 – AIR HANDLING PARTS, COMPRESSOR

Products

Position	Product
*17892	WCI G519452-06
*17891	SEAL-FRONT FLANGE
1	PLATE-PROTECTOR-COMP.
2	WCI G518733-01
3	WCI G515924
4	COVER-TERM
5	GASKET-CVR NUT
6	NUT-TERM CVR
7	OVERLOAD (NON-ILLUSTRATED)
8	WCI G515921
9	NUT-COMPR. MTG. (2)
10	SPACER – COMPRESSOR MTG. (3)
11	SLEEVE-COMPR
12	GROM-COMPR (3)
13	WCI G149147-04
14	WCI G119302
15	WCI G119108
16	NUT – MOTOR MTG.
17	NUT-MOTOR MTG ( 3 )
18	FAN-SLINGER RING
19	WCI G517058
20	WCI G518451-02
21	WHEEL – BLOWER (NON-ILLUSTRATED)
23	SCRW-NO. 8 X 3/8 (4)
25	WCI G519648
26	WCI G521208
