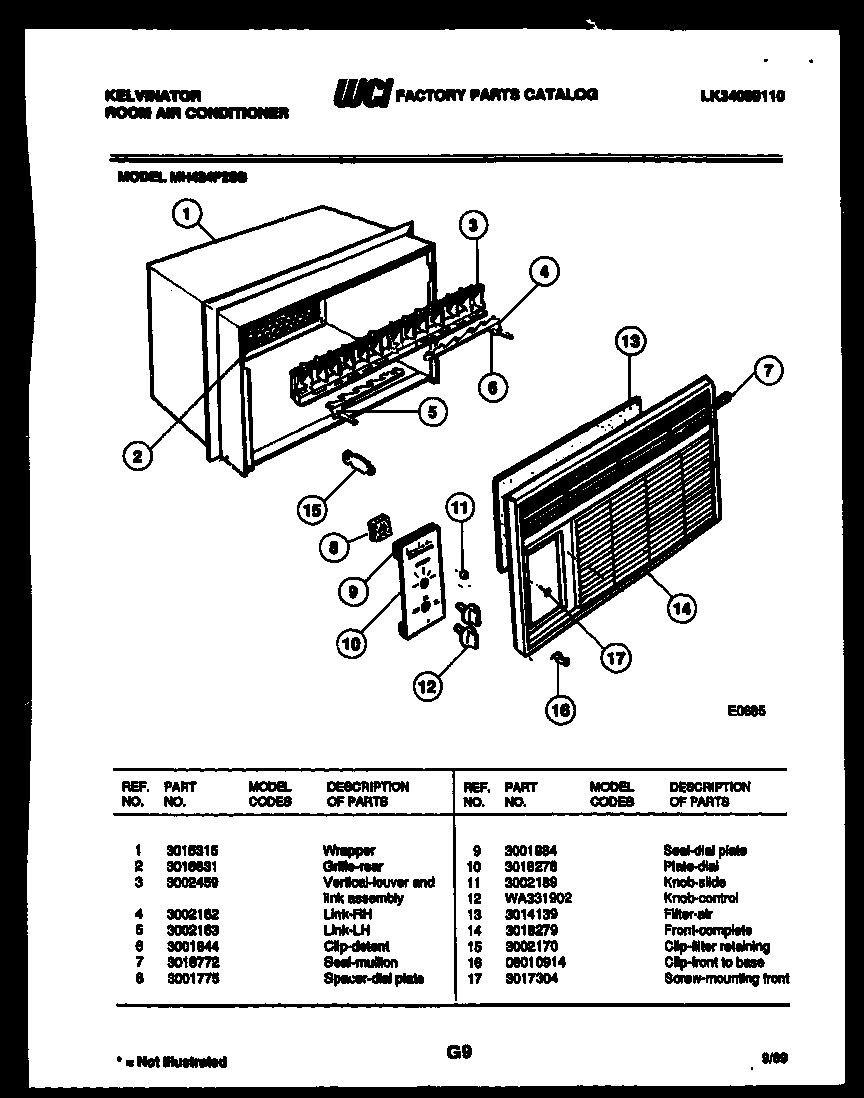

MH424F2SB 02 – CABINET PARTS

Products

Position	Product
1	SHELL-CABINET
2	GRILL - REAR SHELL (NON-ILLUSTRATED)
3	FRAME-VERT & LINK ASSY
4	LINK-VERT LOUVER RH
5	LINK-VERT LOUVER LH
6	CLIP-DETENT
7	WCI 3018772
8	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
9	SEAL-DIAL PLATE
10	WCI 3018278
11	WCI 3002189
12	WCI WA331902
13	FILTER-AIR
14	WCI 3018279
15	WCI 3002170
16	CLIP-FRONT TO BASE
17	WCI 3017304
