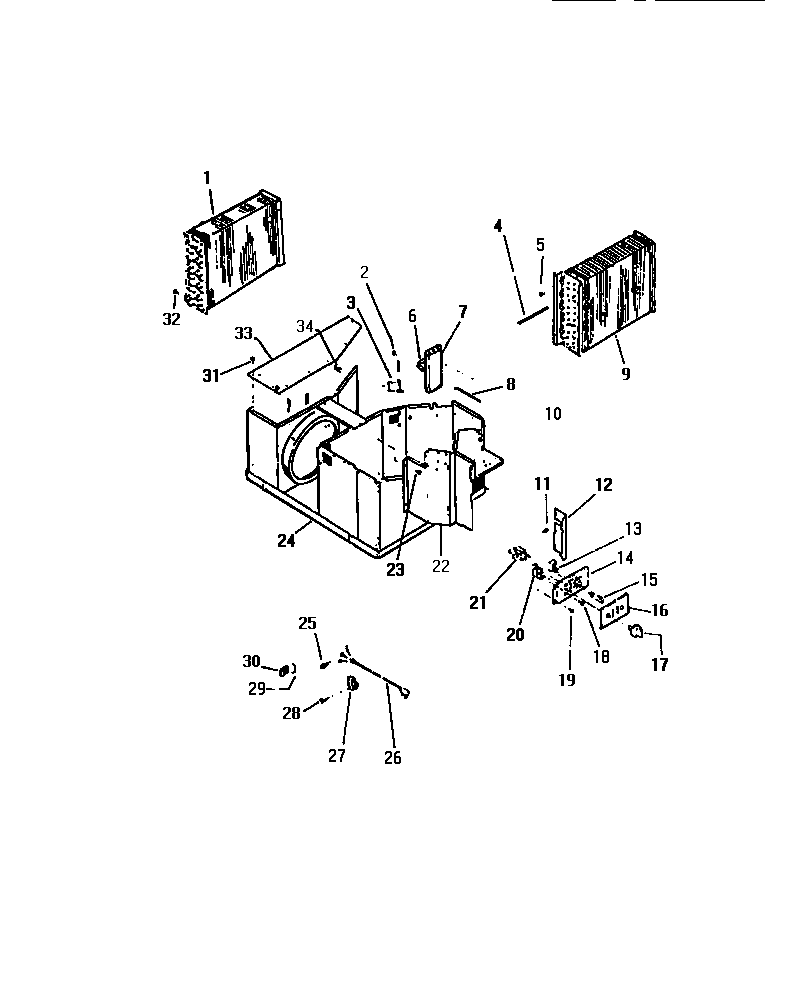

MH521B2SA 03 – CONTROLS

Products

Position	Product
*57892	TUBE, CONNECTOR
*57896	WCI G511424-01
*57890	WCI G157176
*57898	GROMMET-RUBBER
*57897	WCI G517928
*57891	STRAINER-FILTER
*57900	154419403 Frigidaire Dishwasher Screw
*57899	SLEEVE-MOTOR MOUNTING
1	CONDENSER
2	SCREW-STRAP
3	WCI G501587
4	WCI G144044-01
6	STRAP, CAPACITOR
7	CAPACITOR (NON-ILLUSTRATED)
8	WCI G149351
9	WCI G505502
10	BUSHING, SNAP
12	BAFFLE, WATER
13	WCI G515768
14	WCI G512685
16	WCI G519432
17	WCI G110826
18	SCREW-CNTL (6)
20	WCI G519975
21	WCI G506420
22	WCI G514869
24	WCI G514885
26	WCI G506345-39
27	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
28	SCREW-CLAMP
29	RETAINER
30	WCI G519968
32	WCI G516352
33	COVER-DUST
34	WCI G157339
