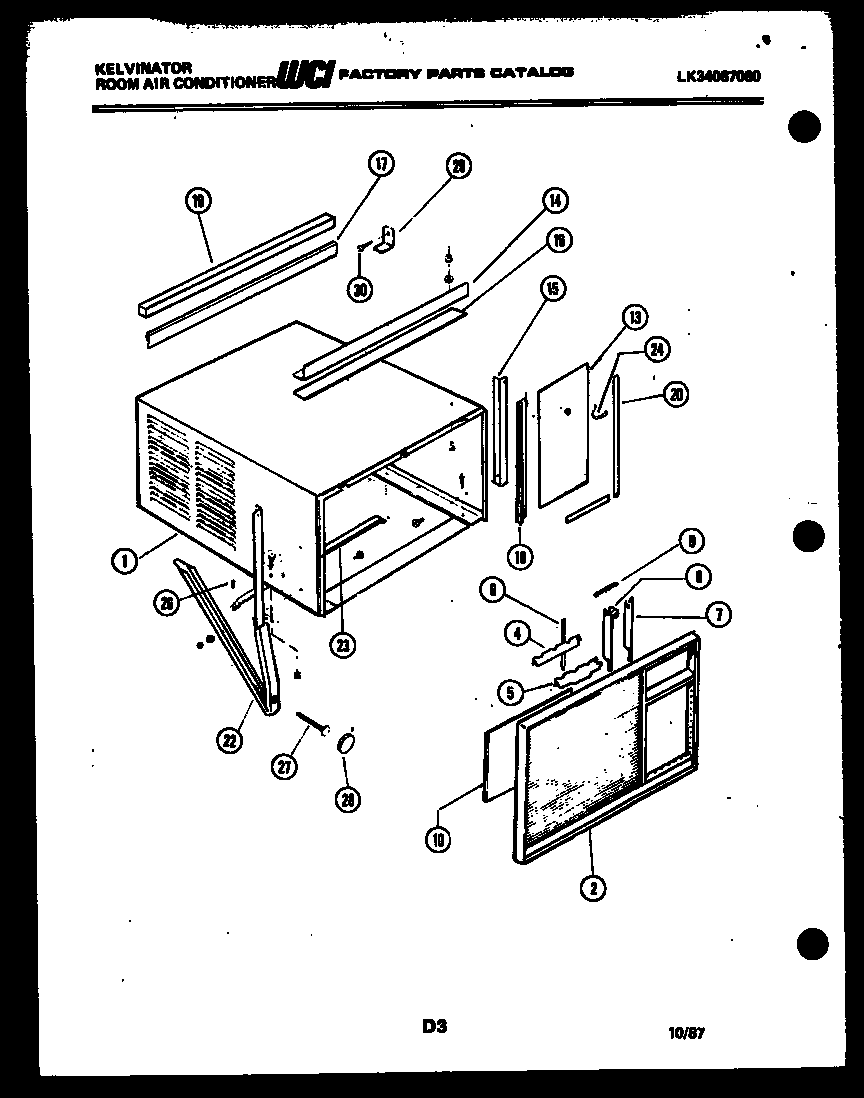

MH525D2SA 02 – CABINET PARTS

Products

Position	Product
1	SHELL-CABINET
2	WCI G158353
3	WCI G513281-14
4	WCI G513272-18
5	WCI G512966-18
6	LINK-HORIZONTAL LOUVER
7	LOUVER-VERTICAL
8	LOUVER, VERTICAL DIRECTIONAL
9	LINK, VERTICAL LOUVER
10	WCI G157868
11	WCI G157696-10
12	PANEL ASSEMBLY-CABINET FRONT
13	WINDOW PANEL
14	SUPPORT-TOP
15	SUPPORT-SIDES
16	WCI G149187-04
17	WCI G149356-05
18	WCI G149182-05
19	WCI G145337-10
20	WCI G149187-03
21	WCI G149188-03
22	WCI G149392-03
23	BRACE-CROSS SUPPORT
24	WCI G117313
25	SCREW – MOTOR TO DUCT (2)
26	SCREW-MTR DUCT
27	SCREW-BRACE TO BUILDING
28	CAP-RUBBER
29	BRACKET-BASE
30	WCI G100773
