MH6100XYB0 04 – CABINET

MH6100XYB0 04 – CABINET

Written by

in

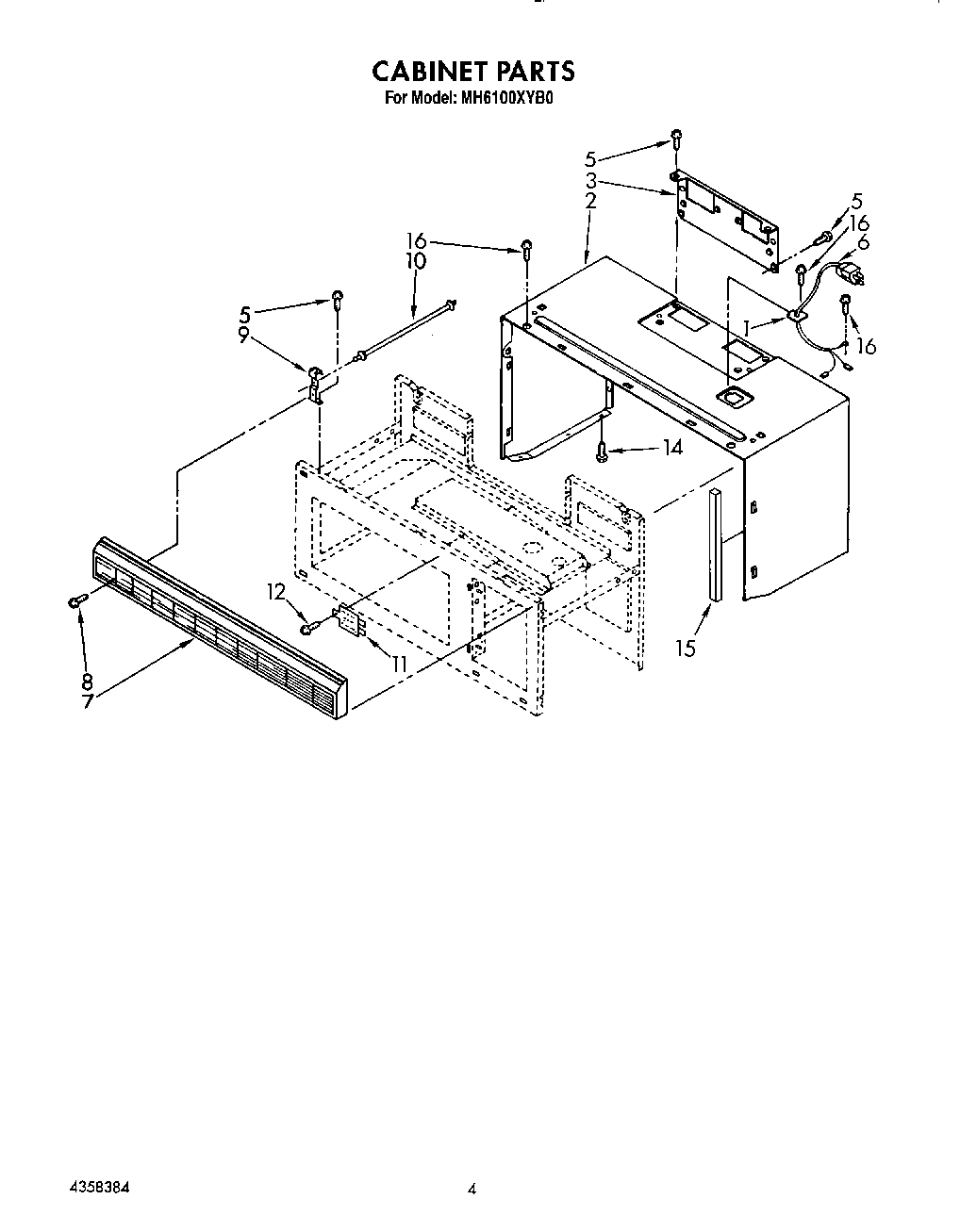

MH6100XYB0 04 – CABINET

Products

Position	Product
1	Strain Relief
2	Outer Case
3	Vent Fan Mounting Bracket
5	W11380570 Whirlpool Microwave Screw
6	Power Cord Assy.
7	Vent Grille
8	Screw (3)
9	Front Bracket
10	Mounting Rod
11	Sealed Plate-R.H.
12	Screw
15	Seal
