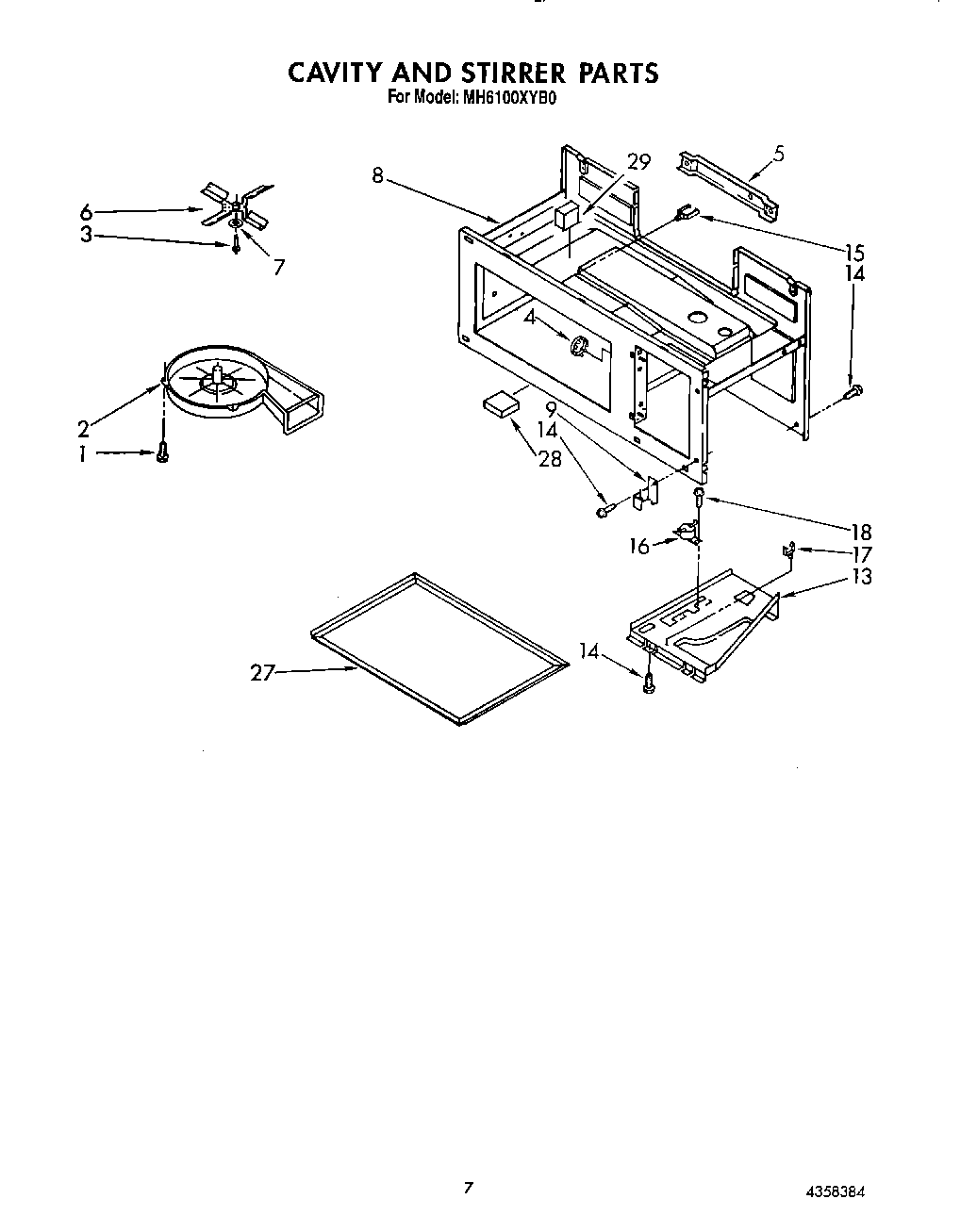

MH6100XYB0 07 – CAVITY AND STIRRER

Products

PositionProduct
1WP3196557 Whirlpool Screw
2Stirrer Fan Cover
3Stirrer Fan Shaft
4Plug, Cavity
5Plate, Bridge
6Stirrer Fan Assy.
7Washer
8Oven Cavity (Not Serviceable)
9Cntl. Hinge Assy. (2)
13Bottom Plate
14W11380570 Whirlpool Microwave Screw
15Wire Holder (4)
16Base Thermostat
17Wire Holder (2)
18Screw
27Ceramic Plate
28Seal, Cavity (Bottom)
29Seal, Cavity (Top)
