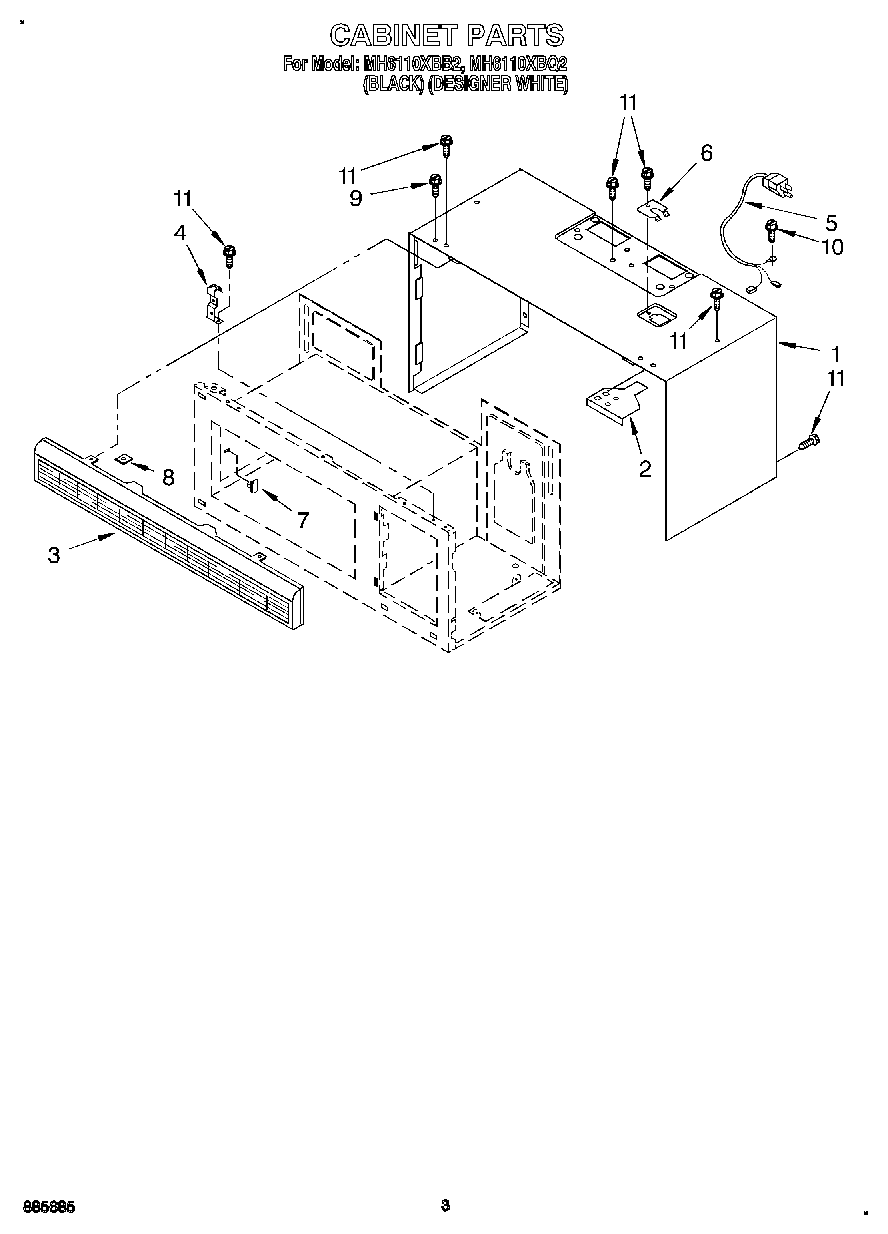

| 1 | Outer Case (Black Model) |
| 1 | Outer Case (White Model) |
| 2 | Mounting Bracket |
| 3 | Grille Vent (White Model) |
| 3 | Grille Vent (Black Model) |
| 4 | Bracket, Front |
| 5 | Power Cord |
| 6 | Cover, Power Cord |
| 7 | Plug, Cavity |
| 8 | Bracket, Grille |
| 9 | Screw (Black Model) |
| 10 | 4344826 Whirlpool Refrigerator Screw |
| 11 | Blower Plate |
| 11 | Screw |
