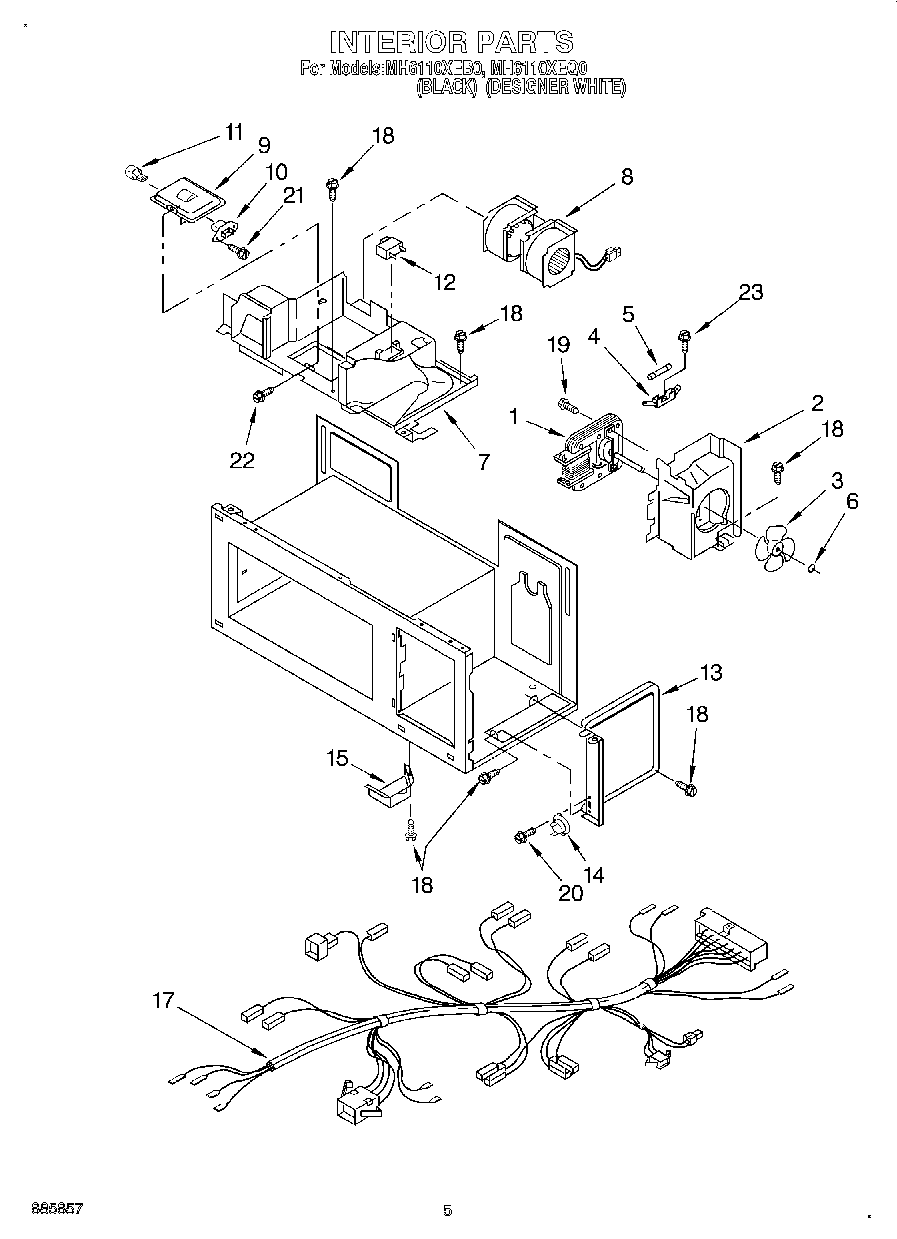

MH6110XEB0 05 – INTERIOR, LIT/OPTIONAL

Products

Position	Product
	Tech Sheet
	Guide, Use & Care
	Instructions, Installation
1	Motor, Fan
2	Guide Suction
3	Blower Fan
4	Holder, Fuse
5	Fuse
6	Push Nut
7	Air Duct
8	Motor, Ventilation
9	Cover, Lamp
10	Lamp Holder
11	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
12	Motor Condenser
13	Guide Air
14	Base Thermostat
15	Cover, Connector
17	Lead Wire
18	W11380570 Whirlpool Microwave Screw
19	Screw
20	Screw
21	Screw
22	Screw
23	Installation Hardware
23	Filler Kit
23	W10815455 Whirlpool Screw
23	WP482338 Whirlpool Refrigerator Adhesive
23	White Model
