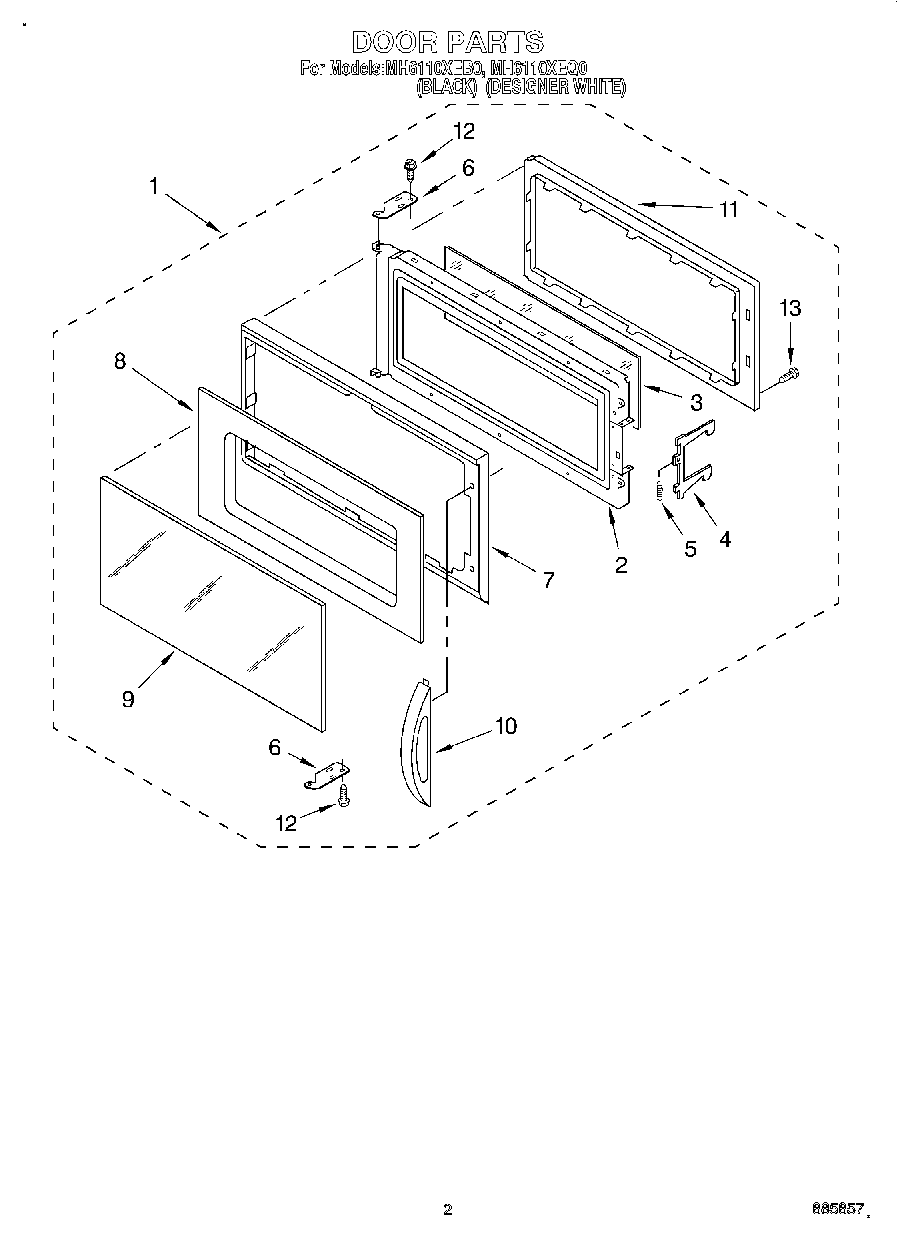

| 1 | Door Assembly (Black Model) |
| 1 | Door Assembly (White Model) |
| 2 | Frame, Door (Black Model) |
| 2 | Frame, Door (White Model) |
| 3 | WPW10146437 Whirlpool Peel and Stick Door Film |
| 4 | Latch |
| 5 | Spring, Latch |
| 6 | Plate, Hinge |
| 7 | Panel, Door (White Model) |
| 7 | Panel, Door (Black Model) |
| 8 | Baffle, Door (Black Model) |
| 8 | Baffle, Door (White Model) |
| 9 | Glass, Door (Black Model) |
| 9 | Glass, Door (White Model) |
| 10 | Handle, Door (Black Model) |
| 10 | Handle, Door (White Model) |
| 11 | Choke Cover (White Model) |
| 11 | Choke Cover (Black Model) |
| 12 | Screw |
| 13 | Screw |
