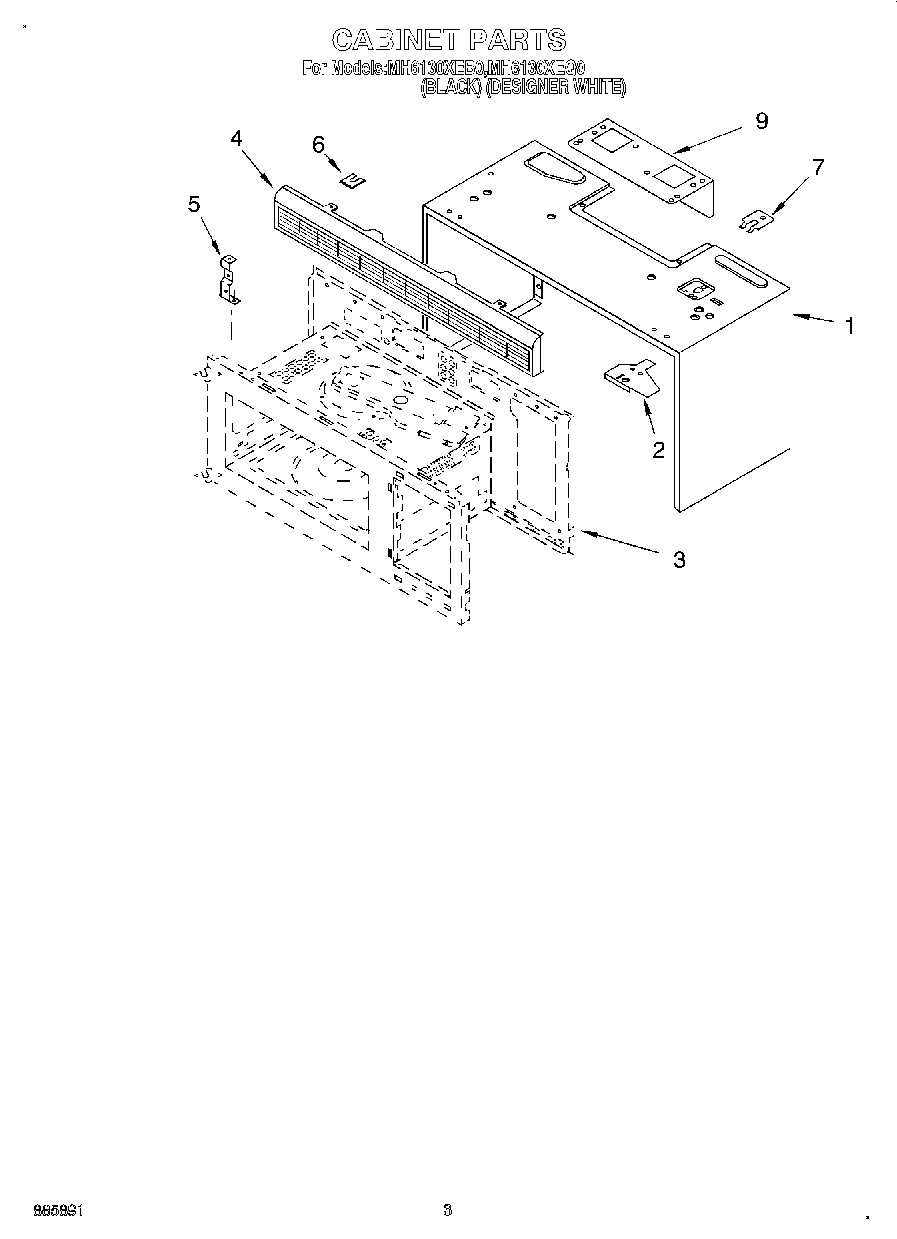

| 1 | Outer Case (Black Model) |
| 1 | Outer Case (White Model) |
| 2 | Mounting Bracket |
| 3 | Cavity Assembly (Not Serviceable) |
| 4 | Screw (Black Model) |
| 4 | Grille Vent (White Model) |
| 4 | Grille Vent (Black Model) |
| 5 | Bracket, Front |
| 6 | Bracket, Grille |
| 7 | W11380570 Whirlpool Microwave Screw |
| 7 | Cover, Power Cord |
| 9 | Blower Plate |
| 9 | Screw |
