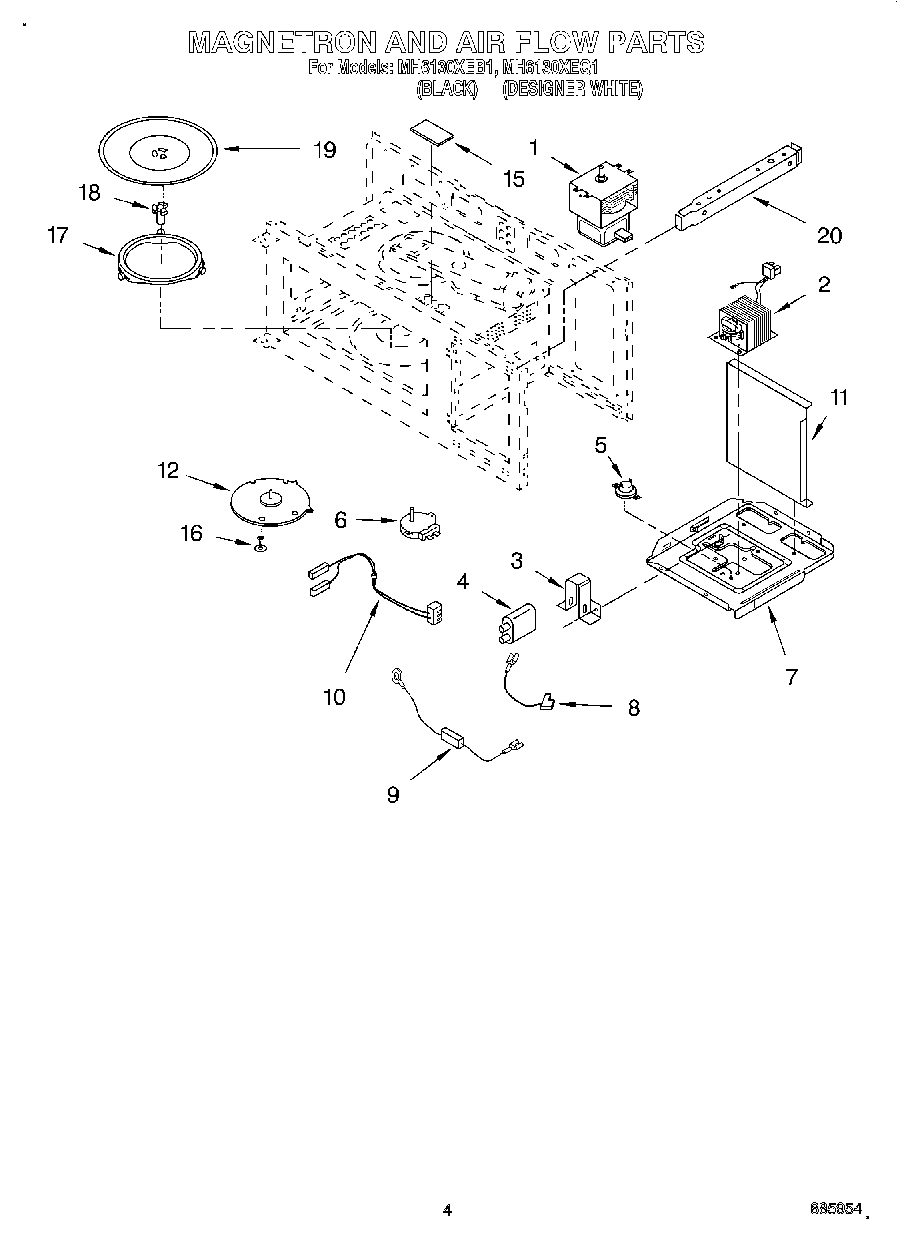

MH6130XEQ1 04 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Magnetron
2WP3400094 Whirlpool Screw
2H.V. Transformer
3Bracket, H.V.
4Capacitor, H.V.
5Base Thermostat
5Screw
6Screw
6Motor, Turntable
7Plate
8H.V. Cable Ass`y
94344826 Whirlpool Refrigerator Screw
9WP8205489 Whirlpool Microwave Voltage Wire
10Lead Wire
11Guide
12Cover
15Tape
16WP4359508 Whirlpool Microwave Stir Rivet
17Rotating Ring
18Turntable Shaft
19WP8172138 Whirlpool Microwave Cook Tray
20Plate
20W11380570 Whirlpool Microwave Screw
