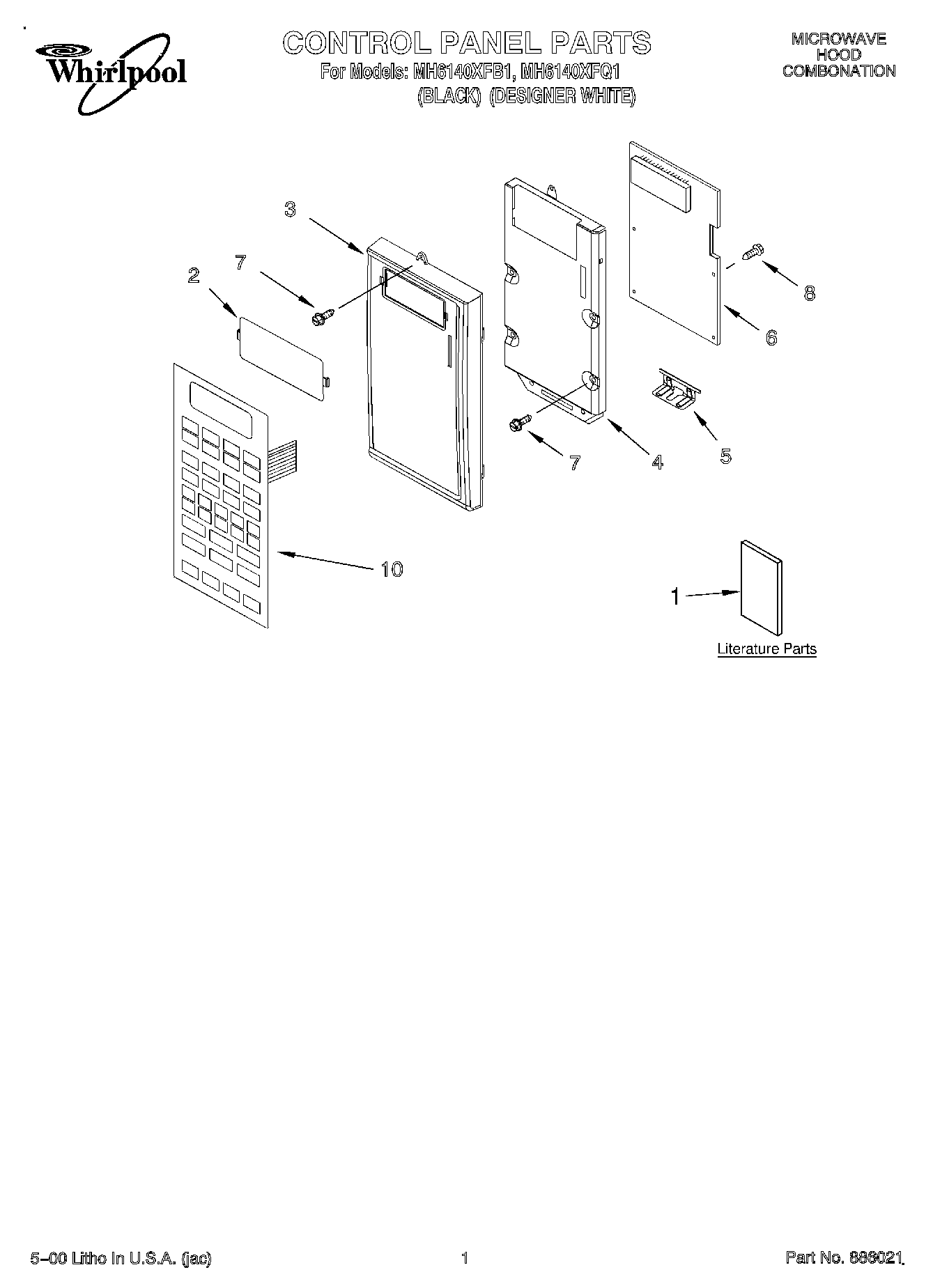

MH6140XFB1 01 – CONTROL PANEL, LITERATURE

MH6140XFB1 01 – CONTROL PANEL, LITERATURE

Written by

in

MH6140XFB1 01 – CONTROL PANEL, LITERATURE

Products

PositionProduct
1Literature Parts (Guide, U & C)
1Literature Parts (Guide, Cooking (Label))
1Literature Parts (Tech Sheet)
1Literature Parts (Instructions, Installation)
2Lens
3Panel, Control (Black)
3Panel, Control (White)
4Bracket, Control
5Plate, Hinge
6PCB Assembly
7Screw
8Screw
10Switch, Membrane (White)
10Switch, Membrane (Black)
