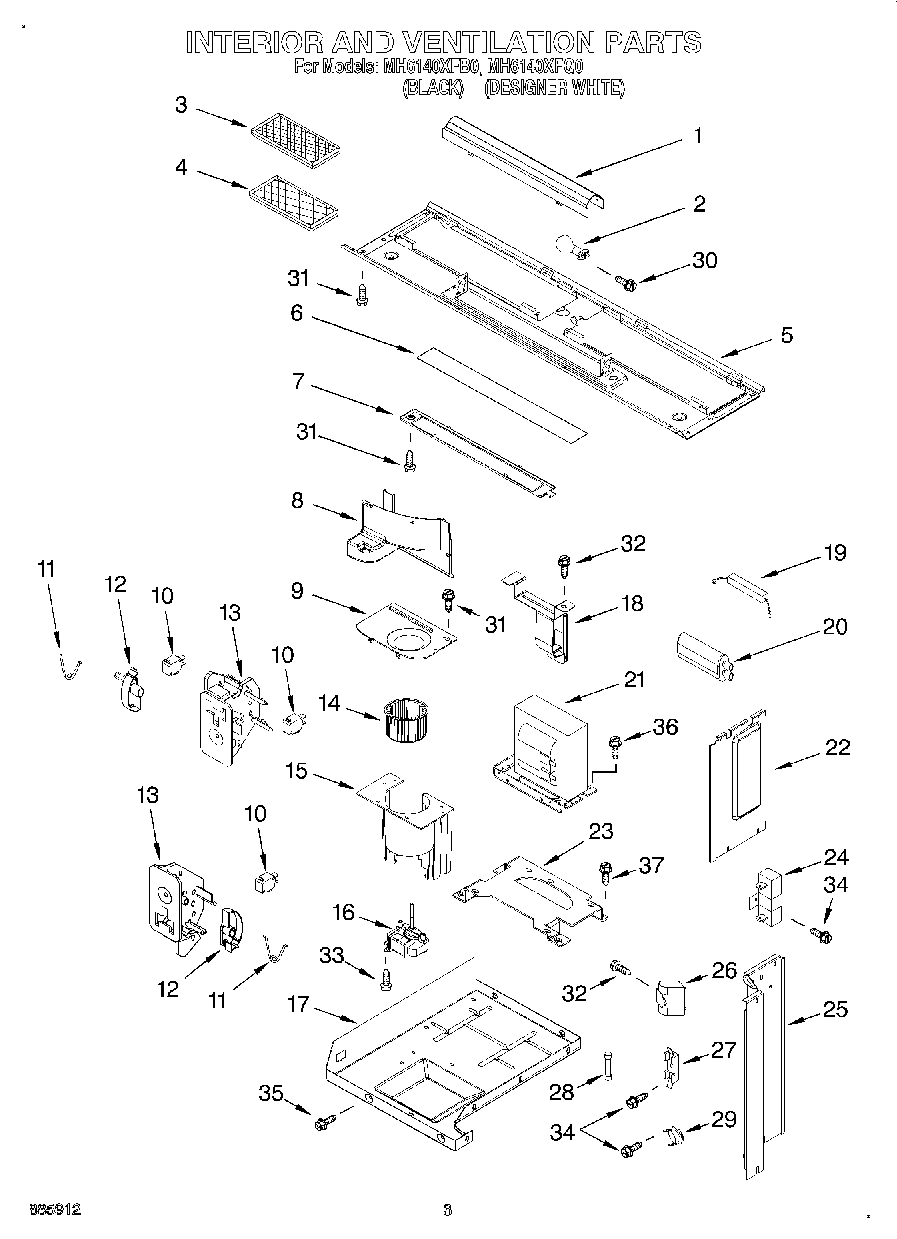

MH6140XFQ0 03 – INTERIOR AND VENTILATIONadmin2025-04-26T10:32:23+00:00MH6140XFQ0 03 – INTERIOR AND VENTILATION
Products
| Position | Product |
|---|
| 1 | Reflector, Lamp |
| 2 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 3 | 6800 Whirlpool Charcoal Filter Kit |
| 4 | 6802A Whirlpool Grease Filter |
| 5 | Plate, Bottom |
| 6 | Glass, Lamp |
| 7 | Holder, Glass |
| 8 | Guide, Air (Magnetron) |
| 9 | Cover, Fan |
| 10 | W10211972 Whirlpool Microwave Switch |
| 11 | Spring, Interlock (2) |
| 12 | Plate, Cam |
| 13 | 8205572 Whirlpool Microwave Interlock |
| 14 | Wheel, Fan |
| 15 | Housing, Fan |
| 16 | Motor, Fan |
| 17 | Chassis |
| 18 | Holder, Capacitor |
| 19 | W11256462 Whirlpool Microwave Diode |
| 20 | CAPACTR-MG |
| 21 | Transformer, H.V. |
| 22 | Plate, Side (R) |
| 23 | Bracket, Transformer |
| 24 | Resistor, Ceramic |
| 25 | Plate, Side (L) |
| 26 | Capacitor |
| 27 | Case, Fuse |
| 28 | FUSE-THRML |
| 29 | Thermostat Open temp: 113~ Fahrenheit Close temp: 140~ Fahrenheit |
| 30 | Screw |
| 32 | W11380570 Whirlpool Microwave Screw |
| 33 | Screw |
| 34 | Screw |
| 35 | Screw |
| 36 | 4393836 Whirlpool Microwave Screw |
| 37 | Screw |
