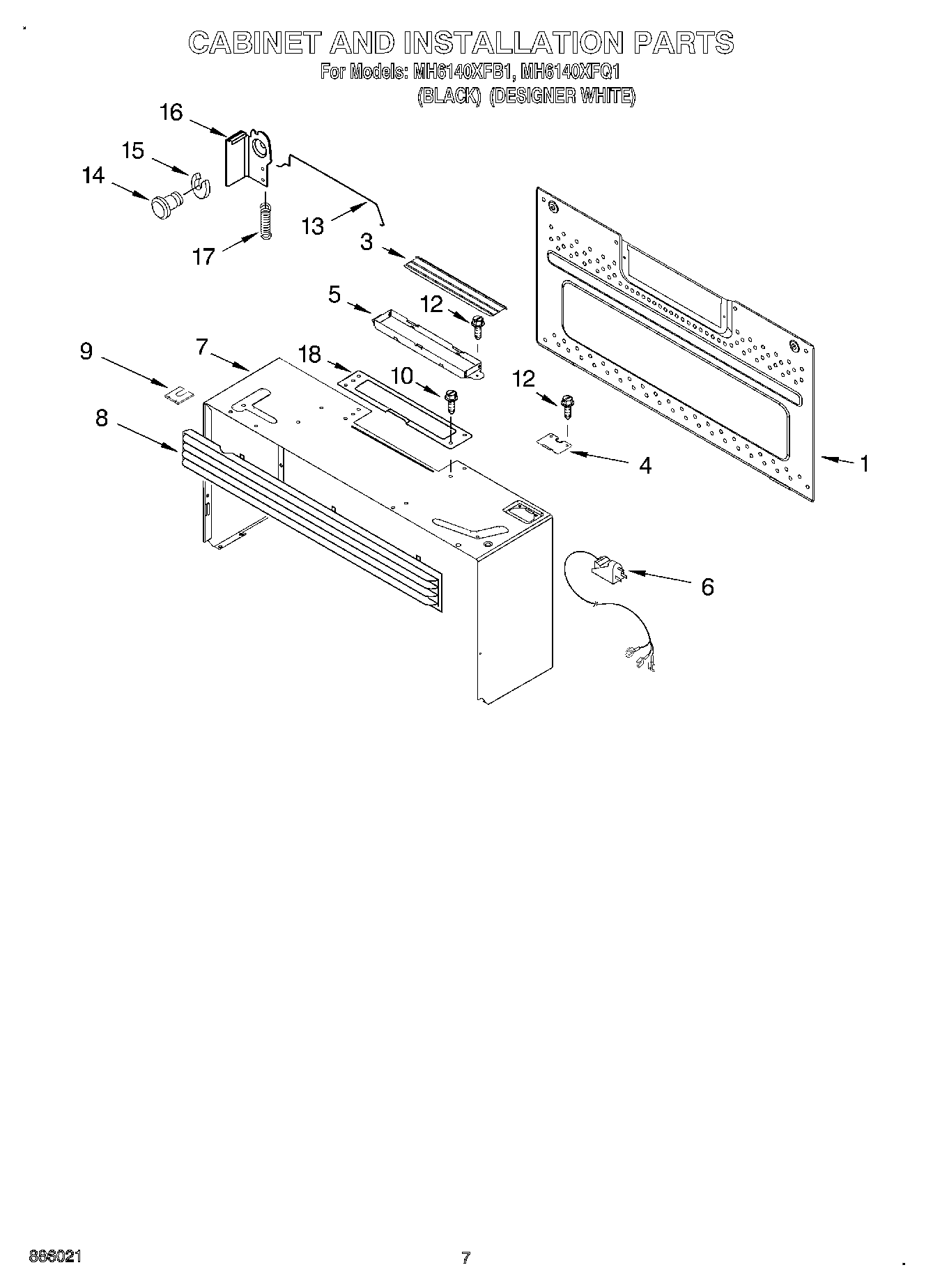

MH6140XFQ1 06 – CABINET AND INSTALLATION

Products

Position	Product
1	WP8206174 Whirlpool Microwave Mounting Bracket
3	W10843943 Whirlpool Microwave Vent Damper
4	Lid, Power Cord
6	Cord, Power
7	Case, Outer (White)
7	Case, Outer (Black)
8	8183948 Whirlpool Microwave Oven Vent Grille
8	8183851 Whirlpool Microwave Oven Vent Grille Black
9	8206334 Whirlpool Microwave Mounting Bracket
10	WP4393834 Whirlpool Microwave Screw
12	Screw
13	Rod
14	Latch, Pivot
15	E-Ring
16	Catch
17	Spring
18	Upper Template
18	Filler Kit (Almond)
18	Wall Template
18	WP8169704 Whirlpool Screw
18	White Model
18	Plate, Damper
18	Filler Kit
18	Hardware, Installation
