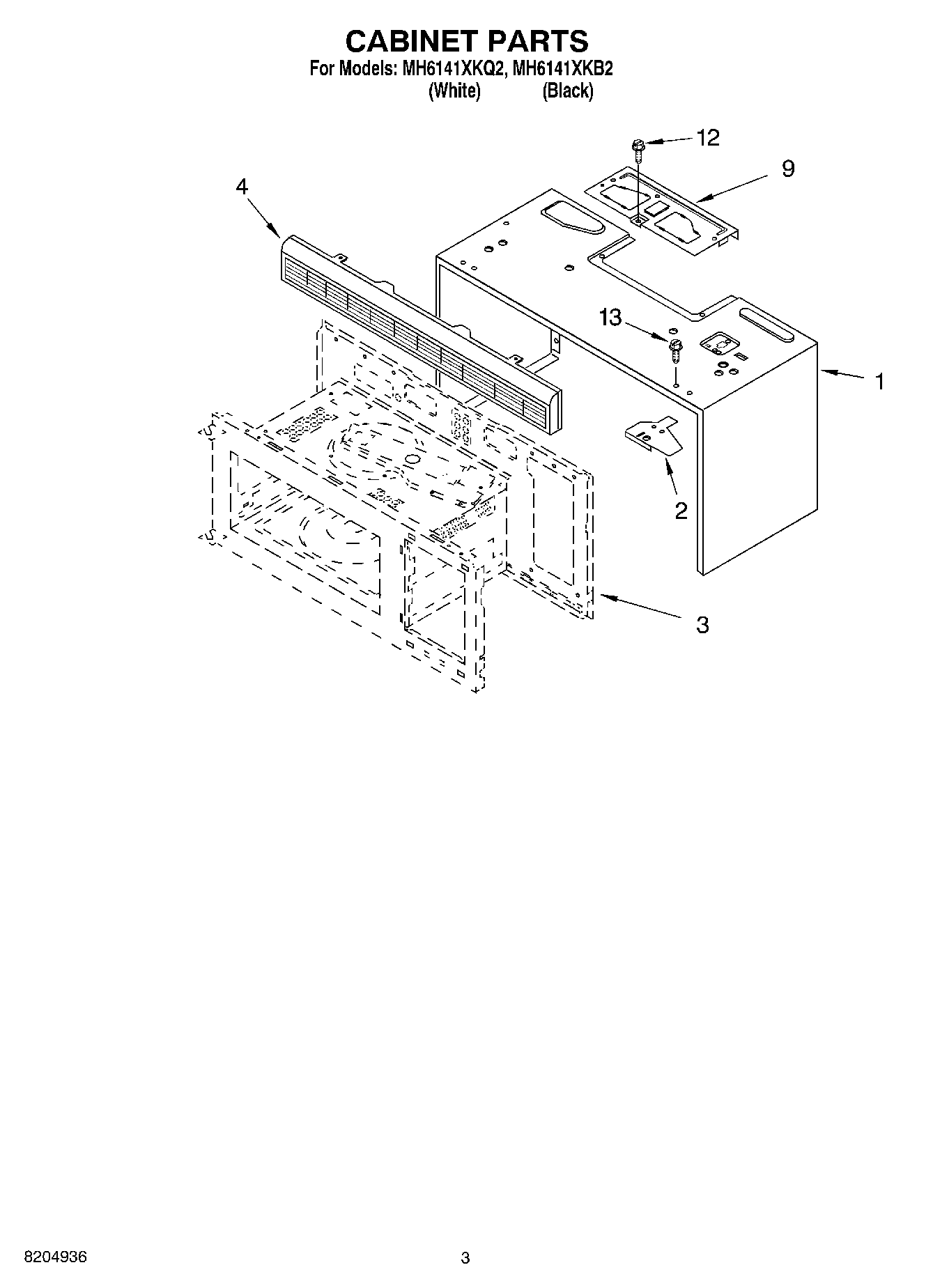

MH6141XKB2 03 – CABINET PARTS

Products

PositionProduct
1Outer Case (White)
1Outer Case (Black)
2Mounting Bracket
3Cavity Assy Not Serviceable
4Grille Vent (Black)
4Grille Vent (White)
9Plate, Mount
12Screw
13Screw (Black Model)
13Screw (White Model)
