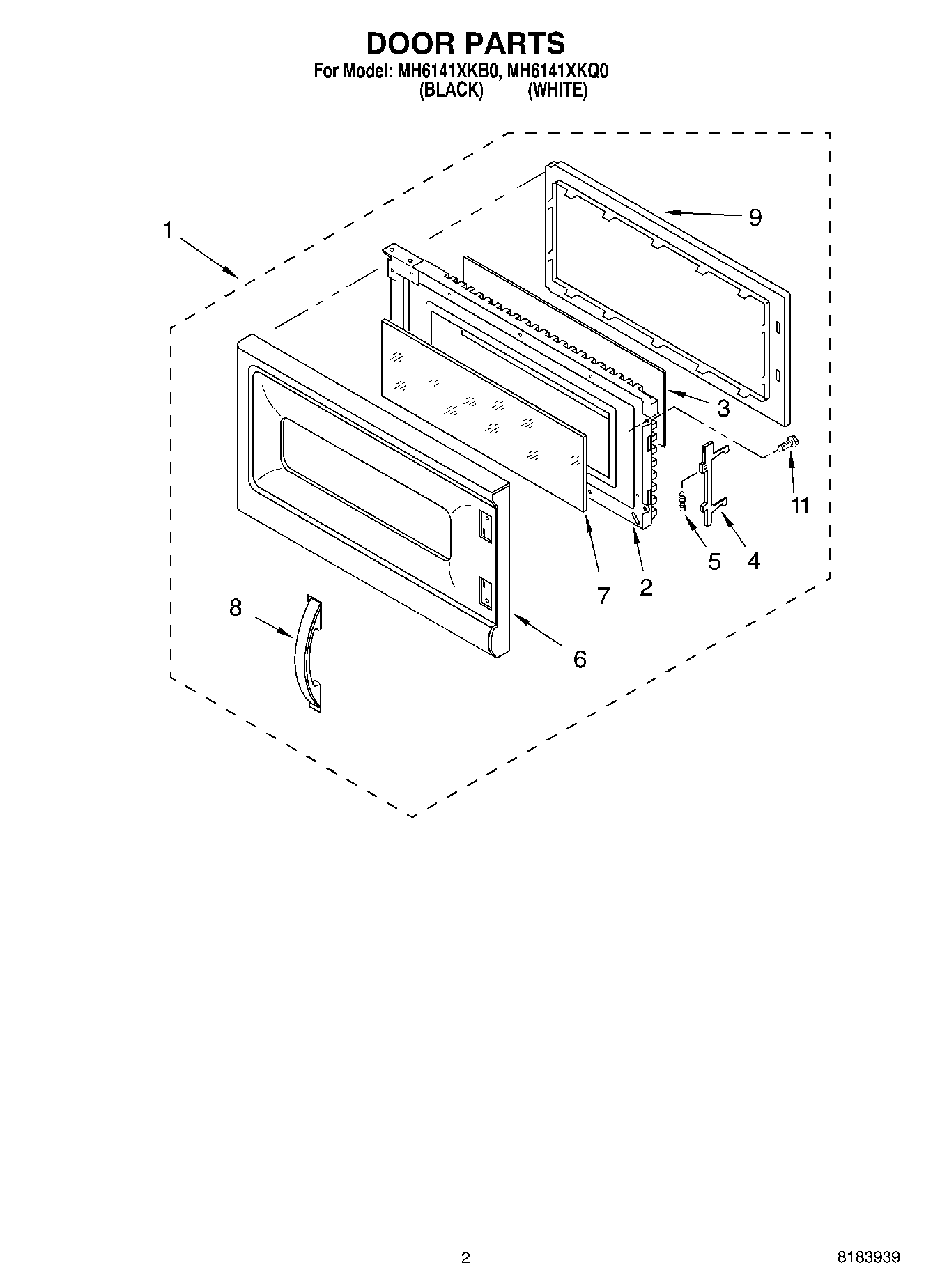

| 1 | Door Assembly (Black) |
| 1 | Door Assembly (White) |
| 2 | Frame, Door |
| 3 | WPW10146437 Whirlpool Peel and Stick Door Film |
| 4 | Latch |
| 5 | Spring, Latch |
| 6 | Panel, Door (White) |
| 6 | Panel, Door (Black) |
| 7 | Glass, Door |
| 8 | Handle, Door (Black) |
| 8 | Handle, Door (White) |
| 9 | Choke, Cover |
| 11 | Screw |
| 11 | Screw (White Model) |
