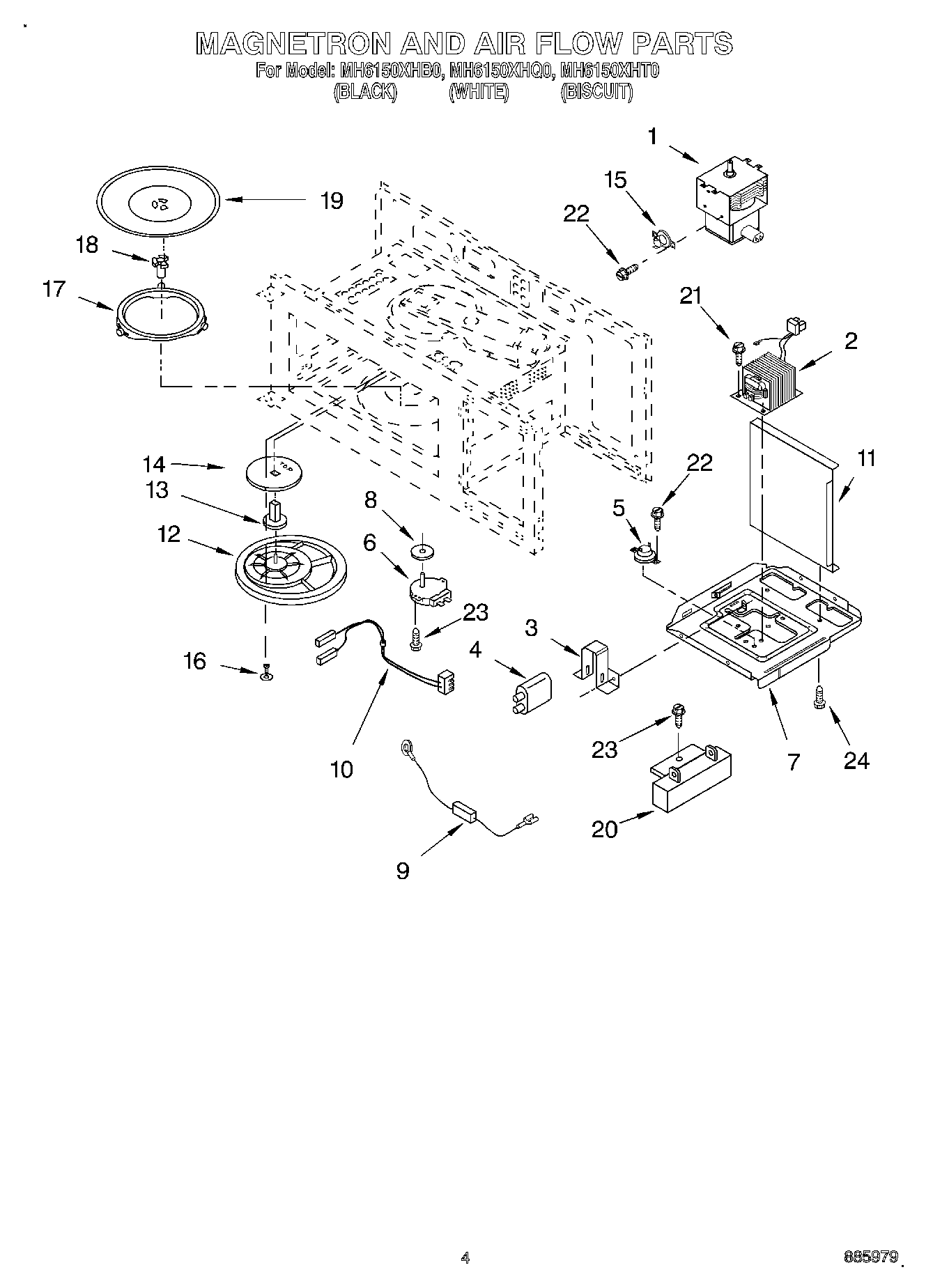

MH6150XHB0 04 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	H.V. Transformer
3	Bracket, H.V.
4	Capacitor, H.V.
5	Base Thermostat
6	Motor, Turntable
7	Plate
8	Seal, Water
9	WP8205489 Whirlpool Microwave Voltage Wire
10	Lead Wire
11	Guide
12	Cover
13	Holder
14	Stirrer Fan
15	Thermostat
16	WP4359508 Whirlpool Microwave Stir Rivet
17	Rotating Ring
18	Turntable Shaft
19	WP8172138 Whirlpool Microwave Cook Tray
20	Resistor, Cement
21	WP3400094 Whirlpool Screw
22	Screw
23	4344826 Whirlpool Refrigerator Screw
24	Screw
