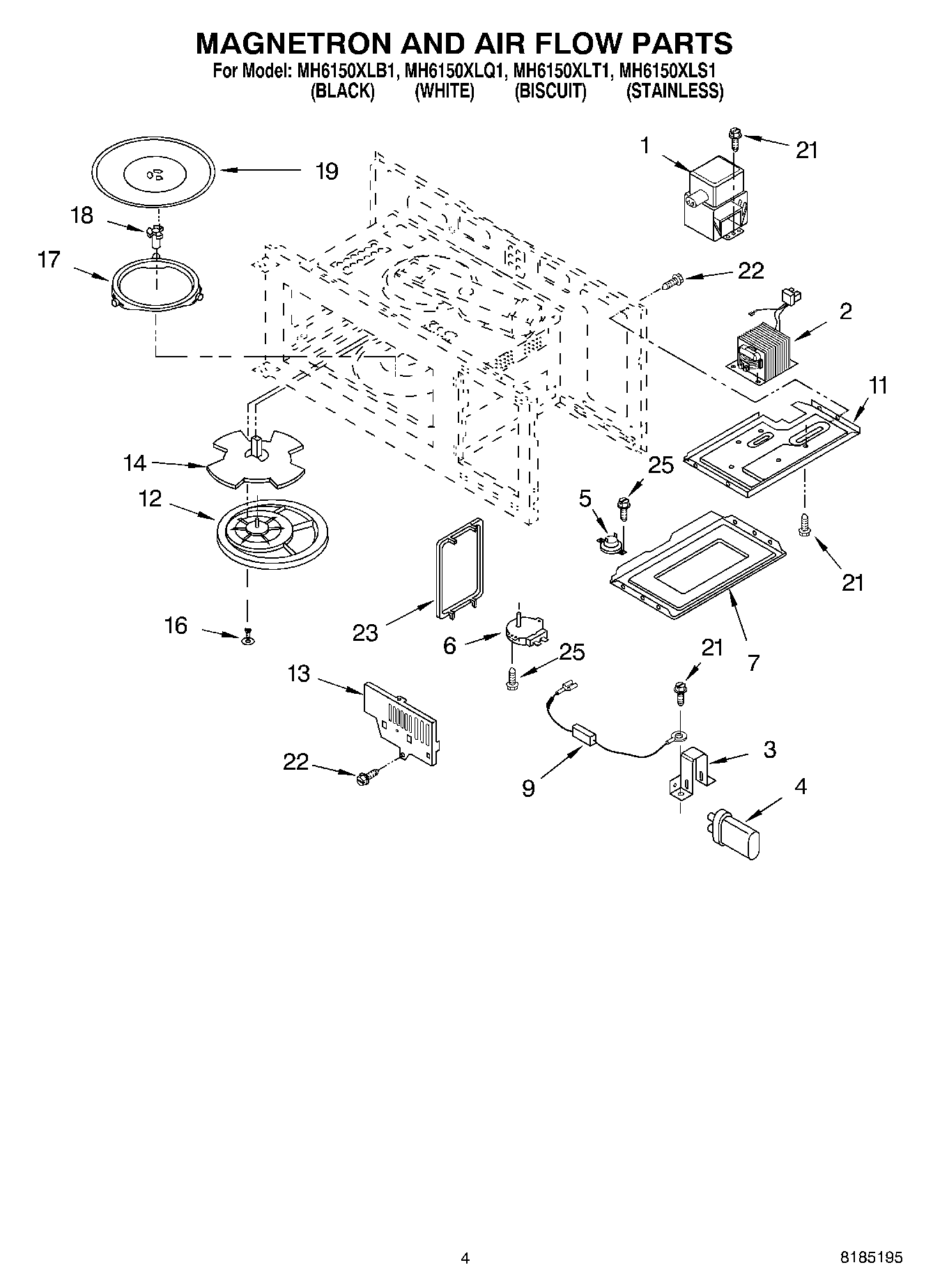

MH6150XLB1 04 – MAGNETRON AND AIR FLOW PARTS

Products

Position	Product
1	WP8205812 Whirlpool Microwave Magnetron
2	H.V. Transformer
3	Bracket, H.V.
4	Capacitor, H.V.
5	Thermostat, Base
6	Motor, Turntable
7	Plate
9	WP8205489 Whirlpool Microwave Voltage Wire
11	BASE
12	Cover
13	Shield, Protector
14	Stirrer Fan
16	WP4359508 Whirlpool Microwave Stir Rivet
17	Rotating Ring
18	Turntable Shaft
19	WP8172138 Whirlpool Microwave Cook Tray
21	4344826 Whirlpool Refrigerator Screw
22	W11380570 Whirlpool Microwave Screw
23	Canopy
25	Screw
