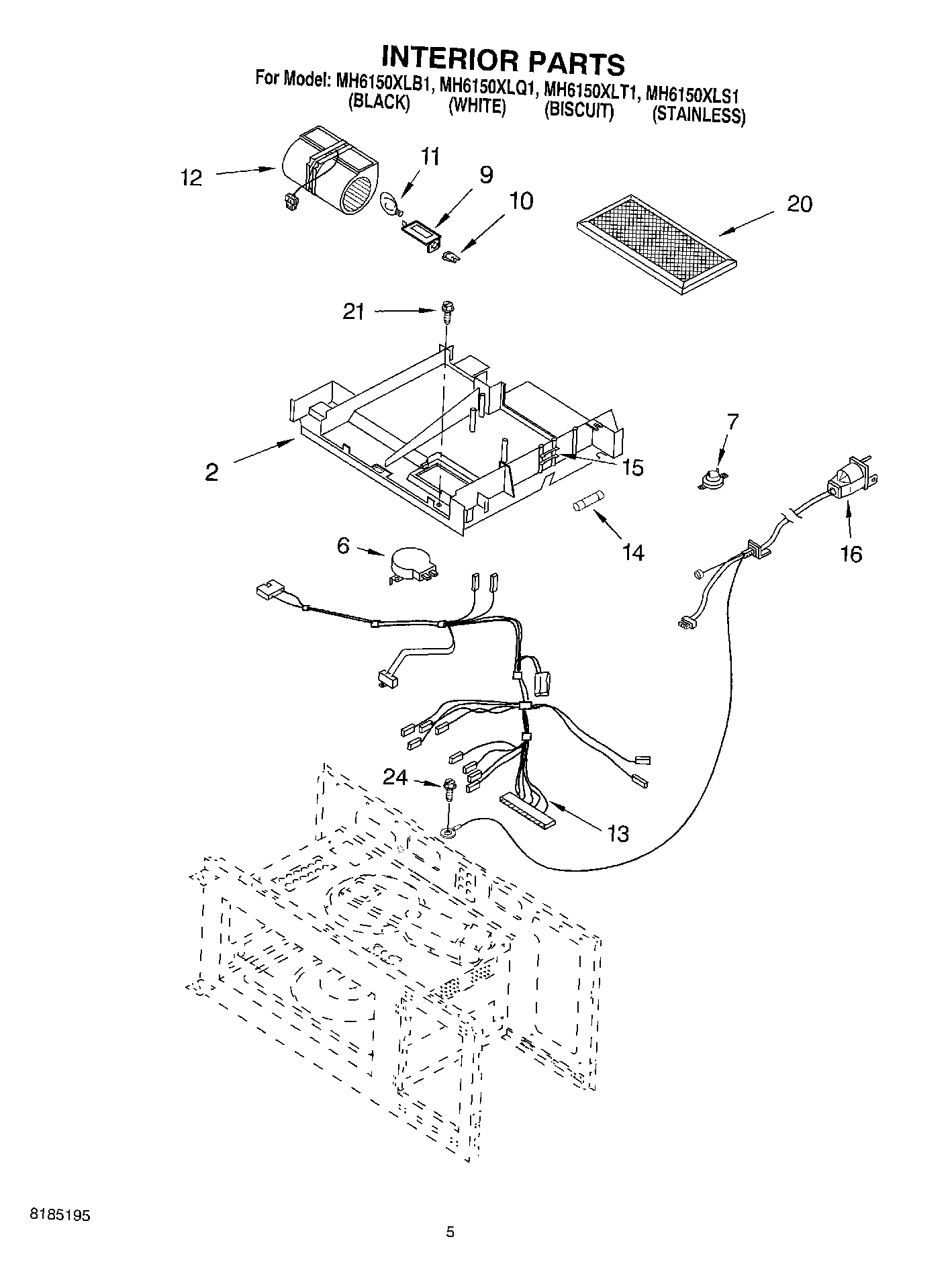

MH6150XLQ1 05 – INTERIOR PARTS

Products

Position	Product
2	Air Duct
6	Motor, Stirrer
7	Thermostat
9	Cover
10	Lamp Holder
11	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
12	Motor, Ventilation
13	Lead, Wire
14	WP8183507 Whirlpool Microwave Fuse
15	Fuse Cap
16	Power Cord
20	W10864204 Whirlpool Microwave Filter
21	Screw
24	WP482338 Whirlpool Refrigerator Adhesive
24	SEALER
24	FOLLOWING PARTS NOT ILLUSTRATED
24	4344826 Whirlpool Refrigerator Screw
24	Installation Hardware
