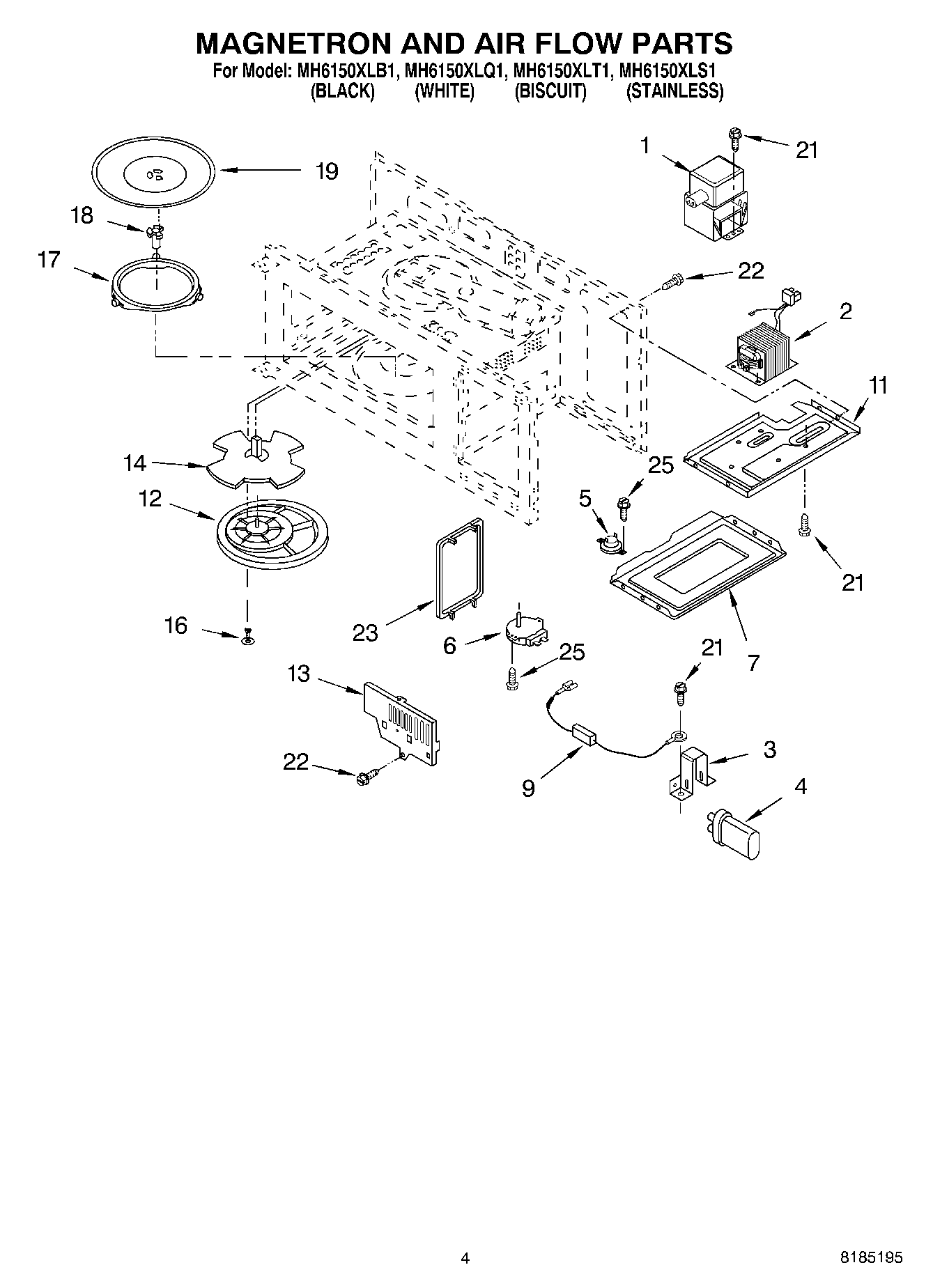

MH6150XLT1 04 – MAGNETRON AND AIR FLOW PARTS

MH6150XLT1 04 – MAGNETRON AND AIR FLOW PARTS

Written by

in

MH6150XLT1 04 – MAGNETRON AND AIR FLOW PARTS

Products

PositionProduct
1WP8205812 Whirlpool Microwave Magnetron
2H.V. Transformer
3Bracket, H.V.
4Capacitor, H.V.
5Thermostat, Base
6Motor, Turntable
7Plate
9WP8205489 Whirlpool Microwave Voltage Wire
11BASE
12Cover
13Shield, Protector
14Stirrer Fan
16WP4359508 Whirlpool Microwave Stir Rivet
17Rotating Ring
18Turntable Shaft
19WP8172138 Whirlpool Microwave Cook Tray
214344826 Whirlpool Refrigerator Screw
22W11380570 Whirlpool Microwave Screw
23Canopy
25Screw
