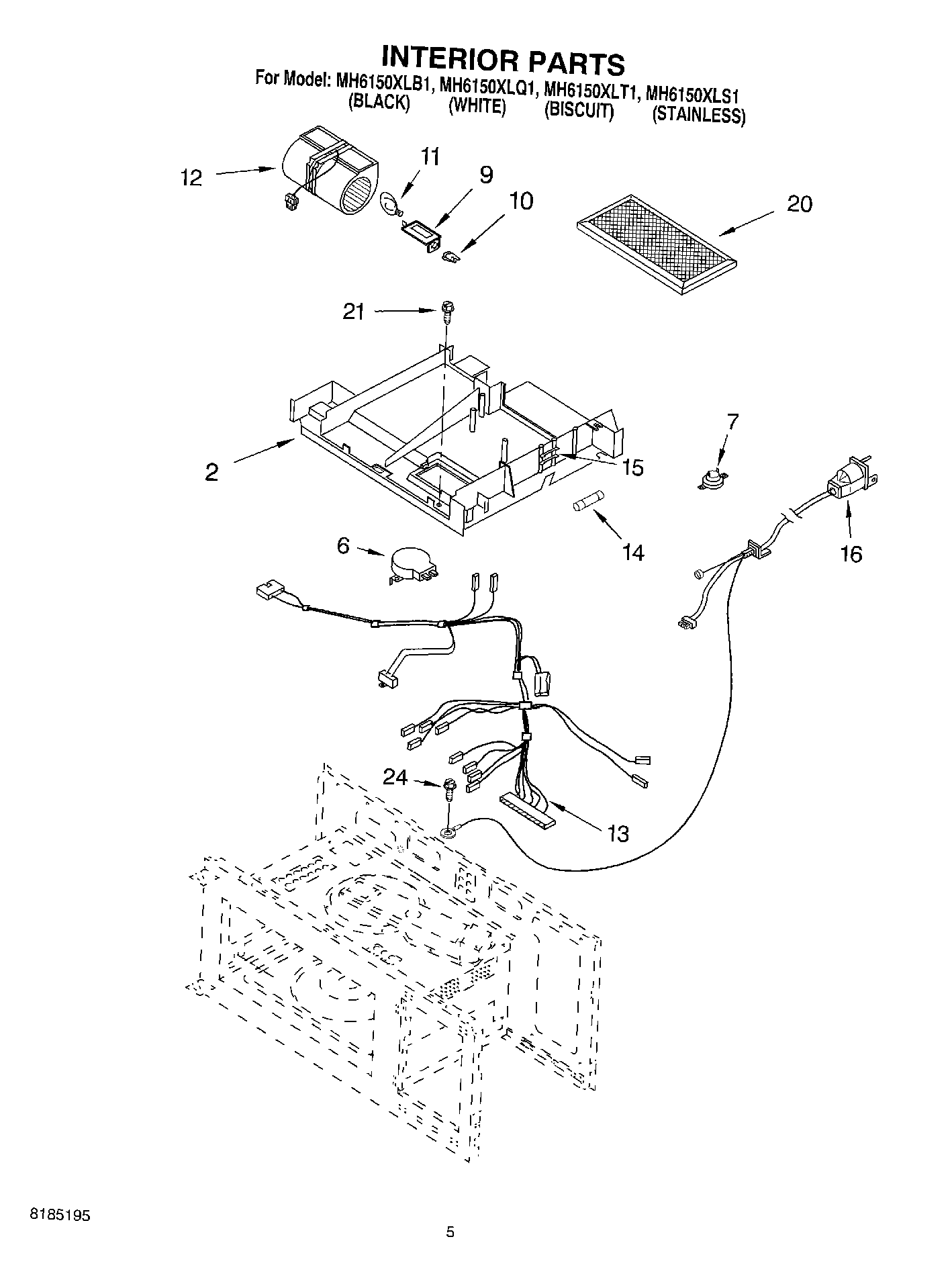

MH6150XLT1 05 – INTERIOR PARTS

Products

PositionProduct
2Air Duct
6Motor, Stirrer
7Thermostat
9Cover
10Lamp Holder
118206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
12Motor, Ventilation
13Lead, Wire
14WP8183507 Whirlpool Microwave Fuse
15Fuse Cap
16Power Cord
20W10864204 Whirlpool Microwave Filter
21Screw
24SEALER
24FOLLOWING PARTS NOT ILLUSTRATED
24WP482338 Whirlpool Refrigerator Adhesive
244344826 Whirlpool Refrigerator Screw
24Installation Hardware
