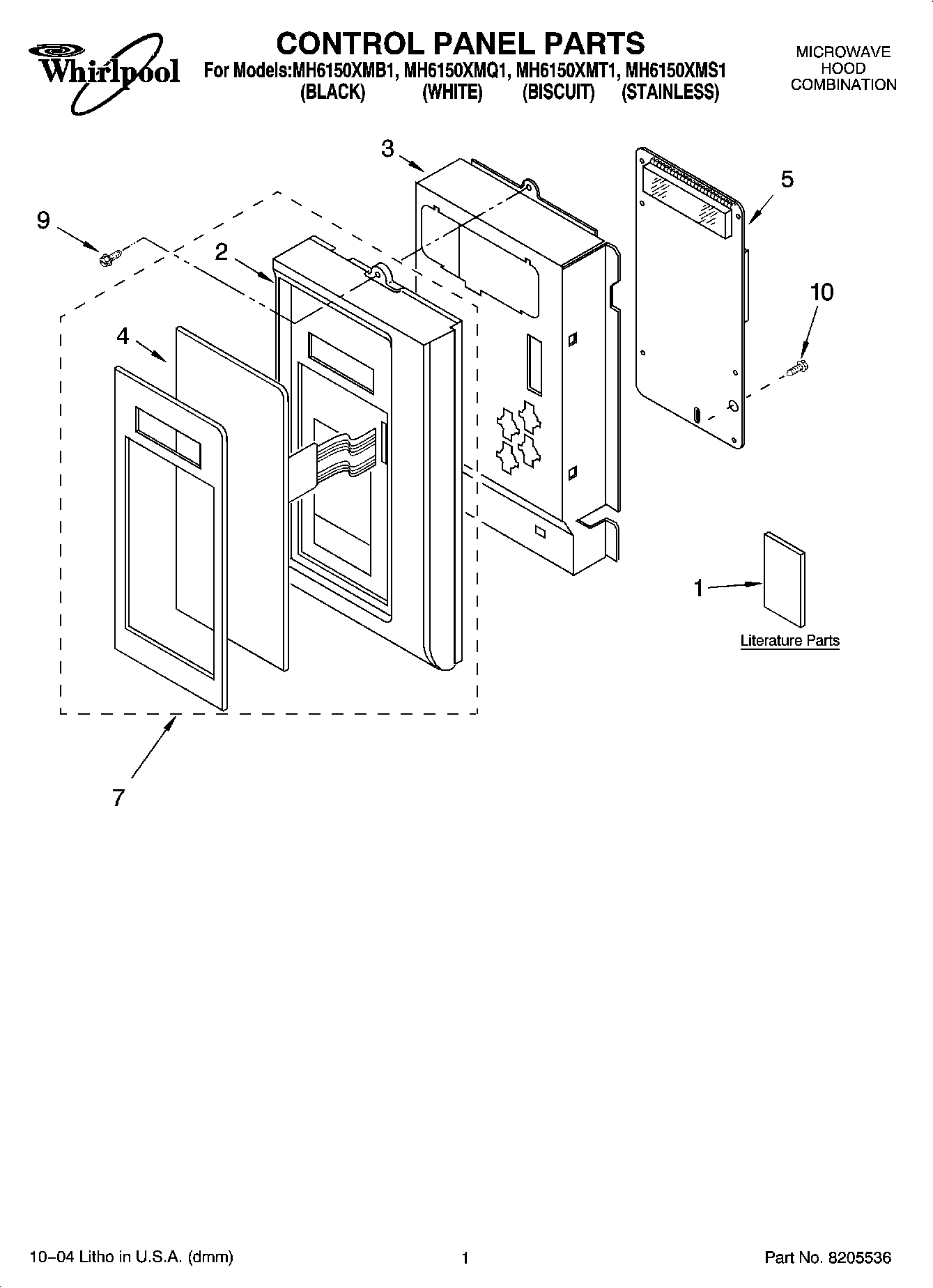

MH6150XMB1 01 – CONTROL PANEL PARTS

MH6150XMB1 01 – CONTROL PANEL PARTS

Written by

in

MH6150XMB1 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Literature Parts (Guide, Cooking)
1Literature Parts (Guide, U & C)
1Literature Parts (Instructions, Installation)
1Literature Parts (Tech Sheet)
2Control Panel (Biscuit)
2Control Panel (Black)
2Control Panel (White)
3Bracket, Control
3Bracket, Control
4Key Membrane (Biscuit)
4Key Membrane (White)
4Key Membrane (Black)
5Microcomputer
7Panel/Membrane Asy Stls Model Only
9Screw (Black Model)
9Screw (White Model)
10Screw
