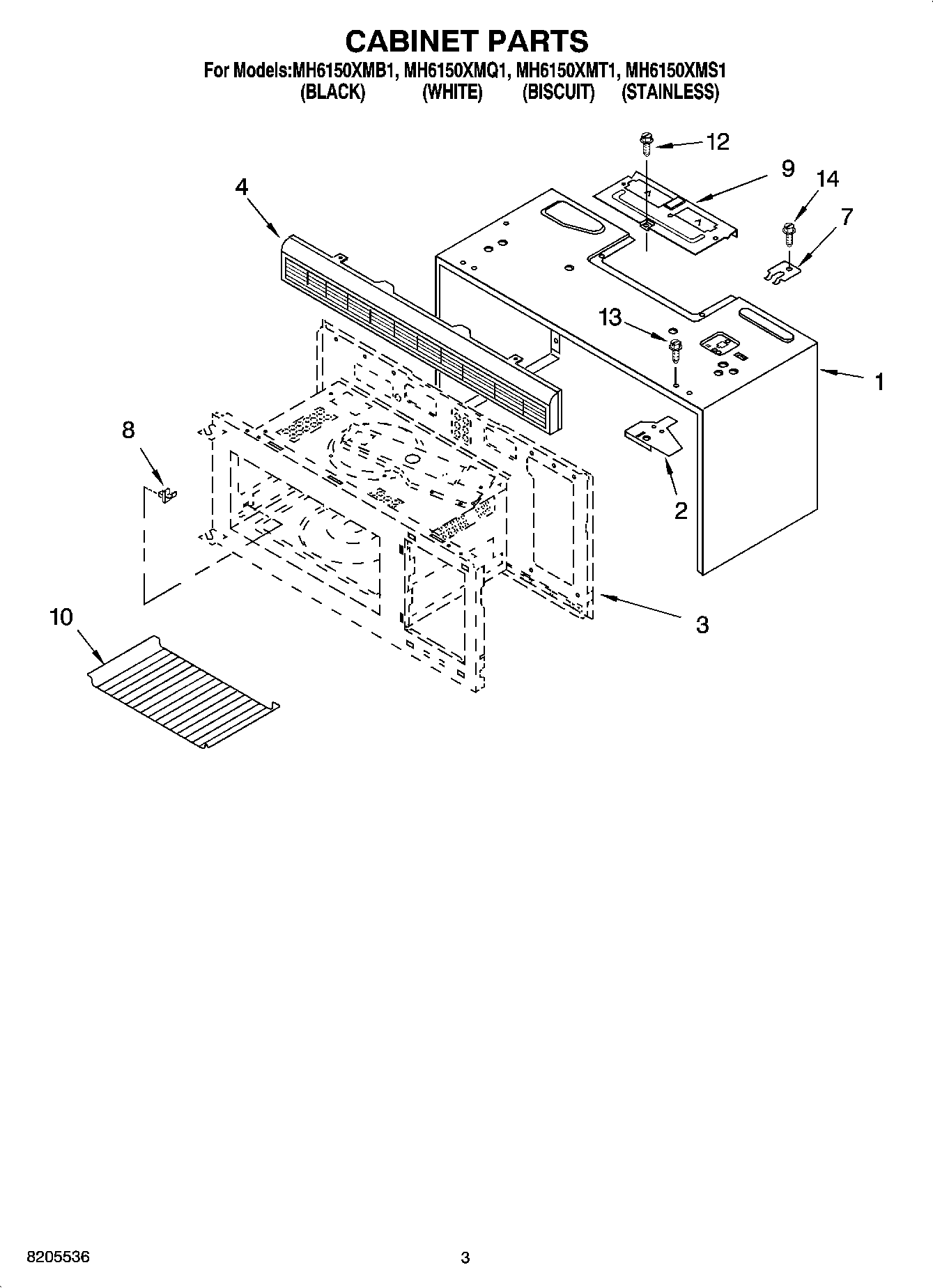

MH6150XMB1 03 – CABINET PARTS

Products

Position	Product
1	Outer Case (Biscuit)
1	Outer Case (White)
1	Outer Case (Black)
2	Mounting Bracket
3	Cavity Assy Not Serviceable
4	Grille Vent (White)
4	Grille Vent (Black)
4	Grille Vent (Biscuit)
7	Cover, Power Cord
8	Shelf Holder
9	Plate, Mount
10	Rack, Grill
12	Screw
13	Screw (Black Model)
13	Screw (White Model)
14	Screw
