MH6150XMQ1 03 – CABINET PARTS

MH6150XMQ1 03 – CABINET PARTS

Written by

in

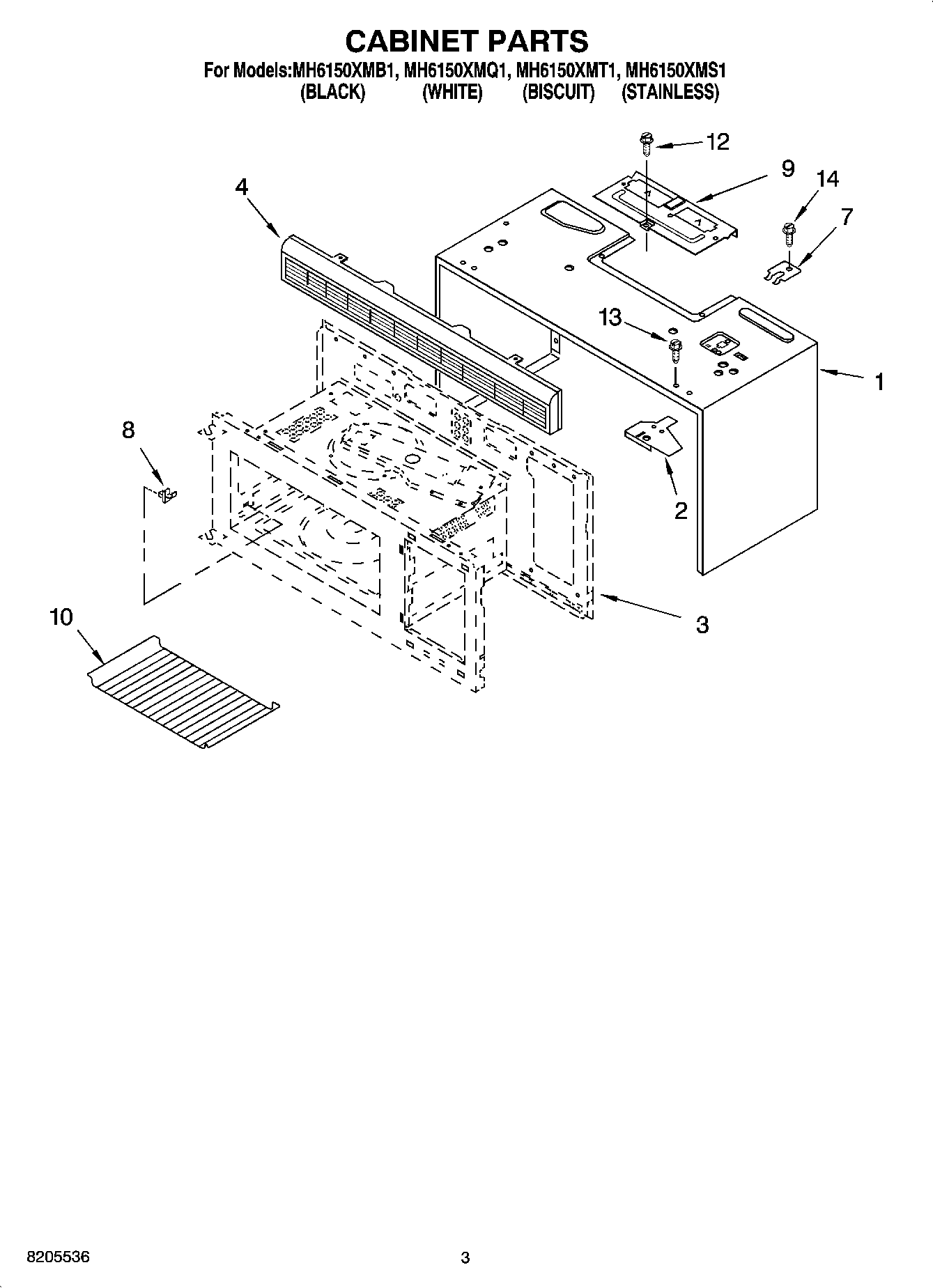

MH6150XMQ1 03 – CABINET PARTS

Products

PositionProduct
1Outer Case (White)
1Outer Case (Biscuit)
1Outer Case (Black)
2Mounting Bracket
3Cavity Assy Not Serviceable
4Grille Vent (White)
4Grille Vent (Black)
4Grille Vent (Biscuit)
7Cover, Power Cord
8Shelf Holder
9Plate, Mount
10Rack, Grill
12Screw
13Screw (Black Model)
13Screw (White Model)
14Screw
