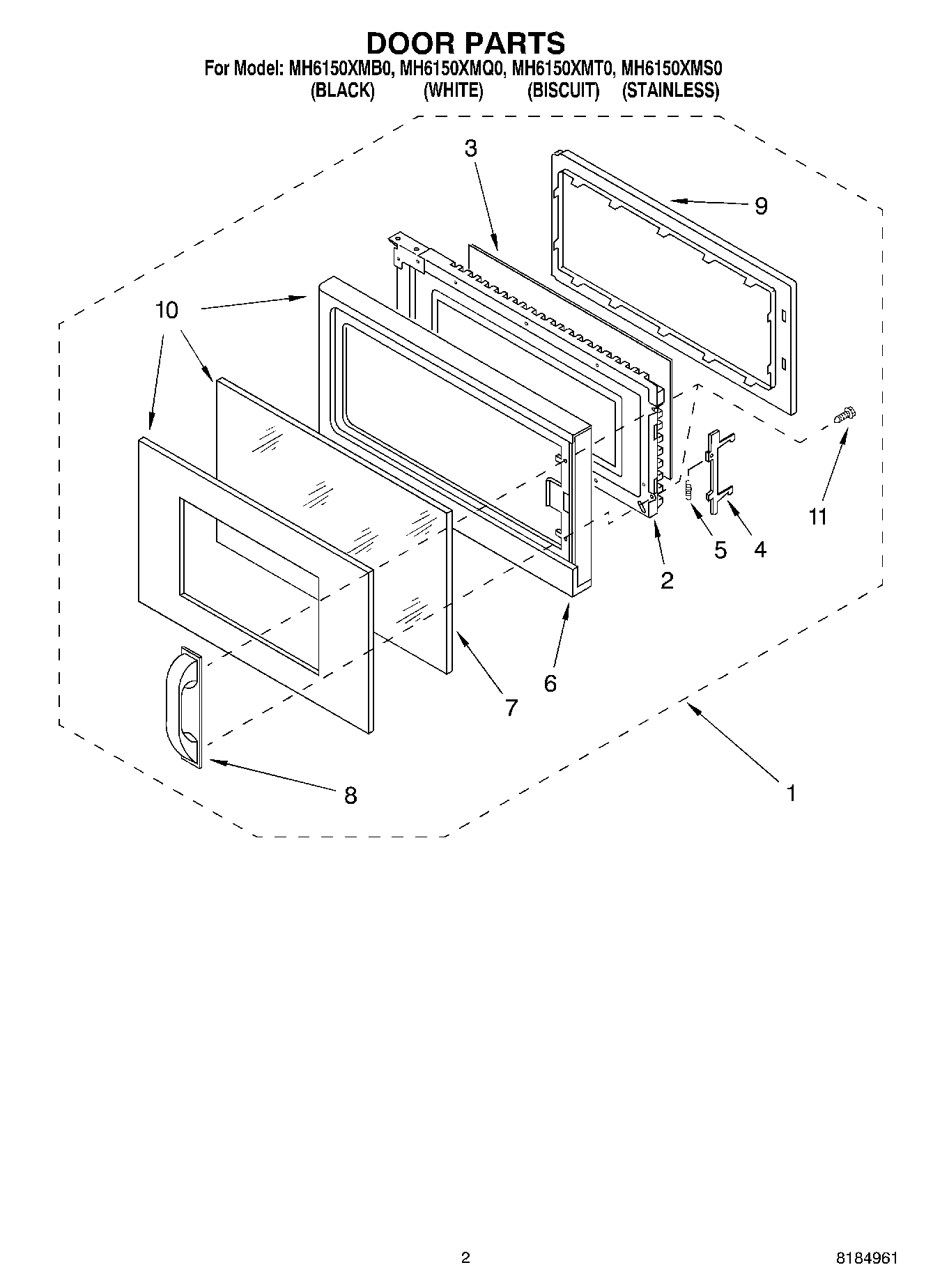

| 1 | Door Assembly (White) |
| 1 | Door Assembly (Biscuit) |
| 1 | Door Assembly (Stainless) |
| 1 | Door Assembly (Black) |
| 2 | Frame, Door |
| 2 | Frame, Door (Stainless Model) |
| 2 | Frame, Door (White) |
| 2 | Frame, Door (Biscuit) |
| 3 | WPW10146437 Whirlpool Peel and Stick Door Film |
| 4 | Latch |
| 5 | Spring, Latch (Stainless Model) |
| 5 | Spring, Latch |
| 6 | Panel, Door (Black) |
| 6 | Panel, Door (Biscuit) |
| 6 | Panel, Door (White) |
| 7 | Glass, Door |
| 8 | Handle, Door (Black) |
| 8 | Handle, Door (White) |
| 8 | Handle, Door (Stainless Model) |
| 8 | Handle, Door (Biscuit) |
| 9 | Choke, Cover |
| 10 | Panel/Glass Assy Stls Model Only |
| 11 | W11380570 Whirlpool Microwave Screw |
