MH6151XHQ1 08 – INSTALLATION – Aparts

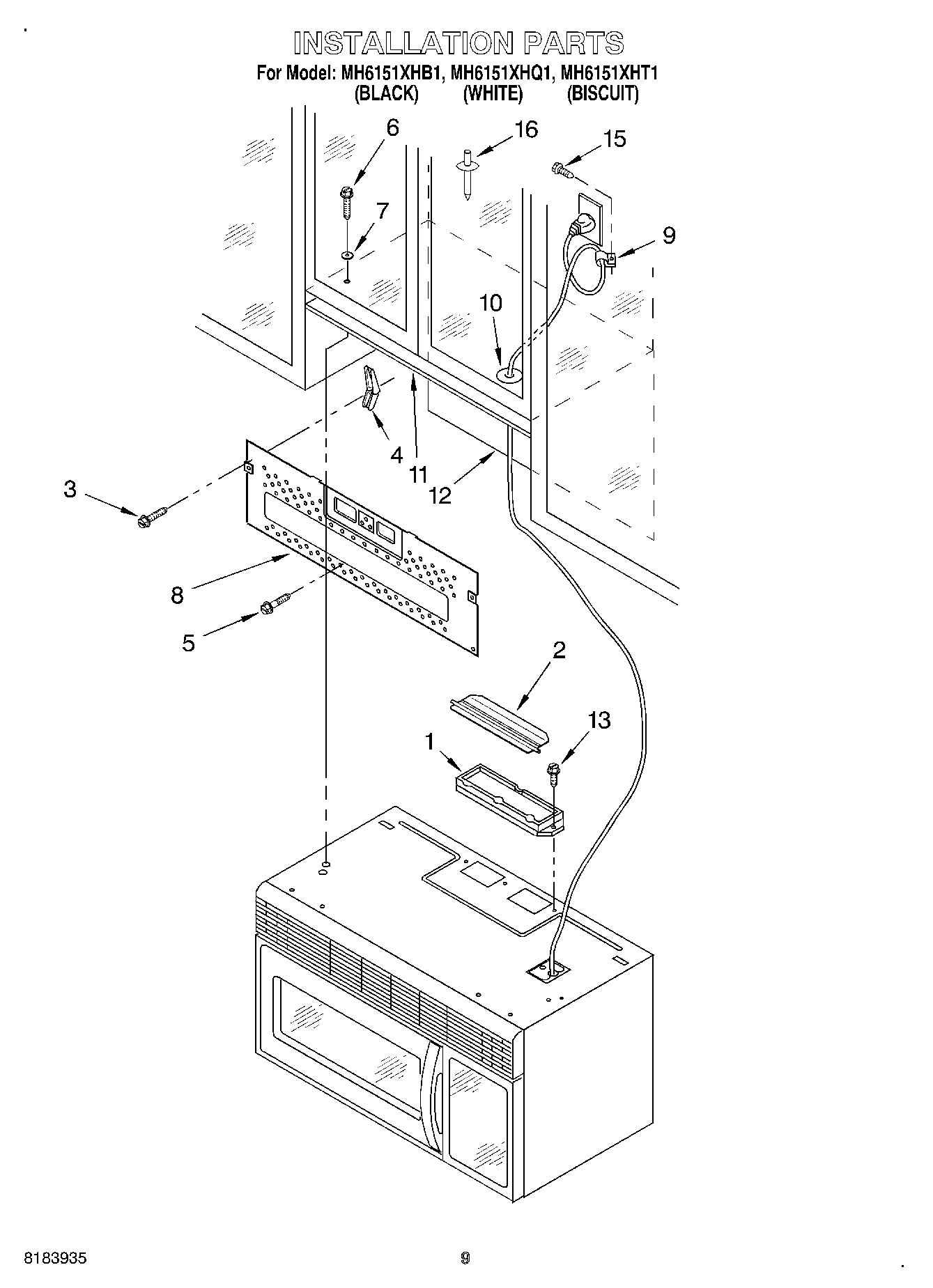

MH6151XHQ1 08 – INSTALLATION

Products

Position	Product
1	Exhaust Adapter
2	Exhaust Damper
3	WP8169704 Whirlpool Screw
4	Toggle Bolt
5	Lag Screw
6	Screw
7	Washer
8	Plate, Mounting Wing
9	8534021 Whirlpool Clamp
10	Bushing
11	Sheet-Top Cabinet Template
12	Sheet-Wall Template
13	Screw
15	WP98008545 Whirlpool Screw
16	Pin, Locking
