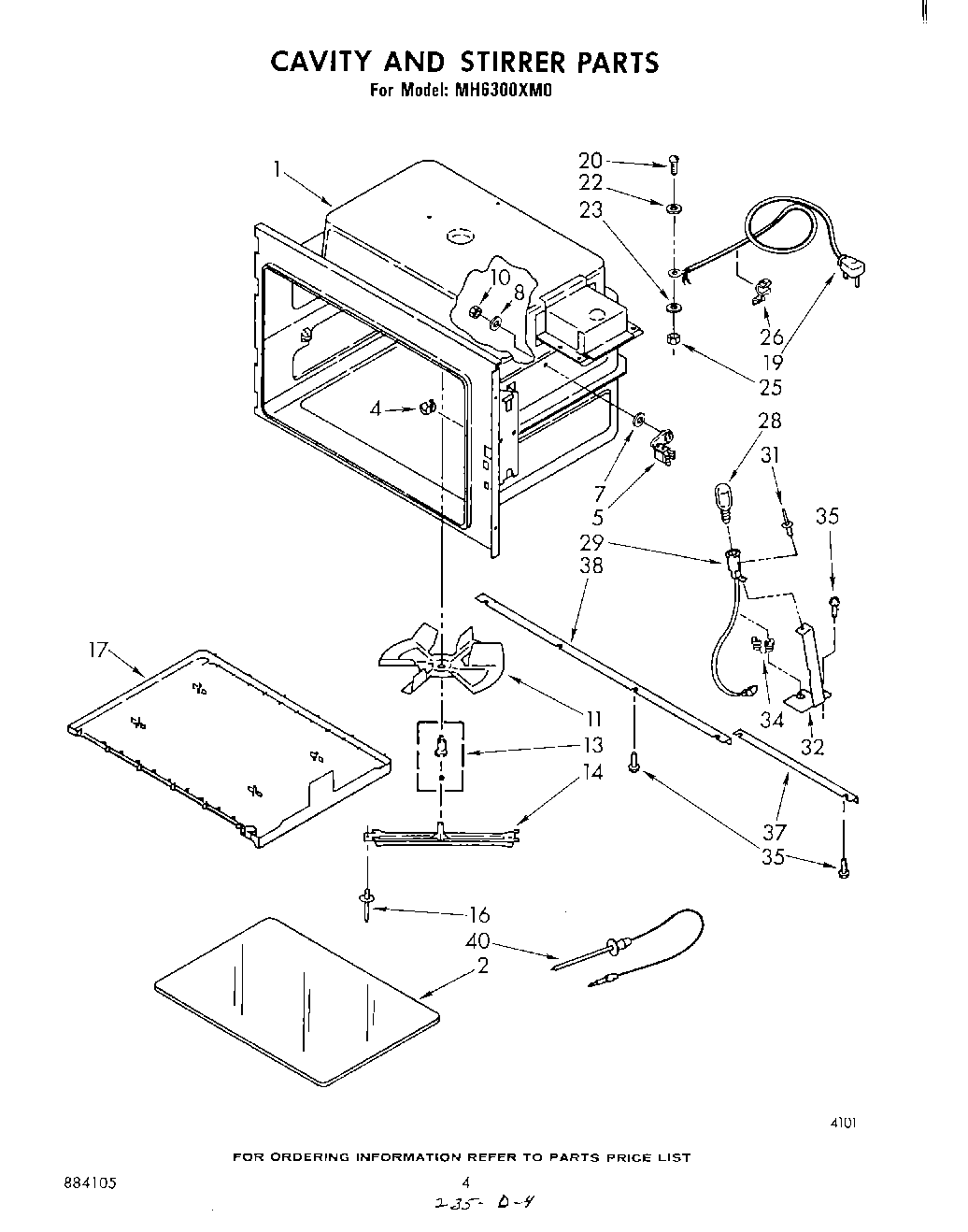

MH6300XM0 03 – CAVITY AND STIRRER

Products

Position	Product
1	Cavity Assembly (Not Serviceable)
2	Shelf (Order Sealant Part No. 482338 For Installation Of Shelf)
4	Plug, Cavity (4)
5	Probe Jack
7	Washer, 3/8
8	Lockwasher 3/8
10	Nut, 8/3-32
11	Blade, Stirrer
13	Insert, Stirrer (Includes Bearing)
14	Support Bar, Stirrer
16	Rivet
17	Cover, Stirrer
19	Cord, Power
20	Screw, 8-32 x 3/8
22	Washer, No.8
23	Lockwasher, No.8
25	WP486255 Whirlpool Air Conditioner Nut
26	Relief, Strain
28	Lamp (40 Watt)
29	Socket, Lamp
31	Pop Rivet (8)
32	Slide, Lamp
34	NO LONGER AVAILABLE
35	WP90767 Whirlpool Screw
37	NO LONGER AVAILABLE
38	Shield, Long Light
40	Probe, Temperature
