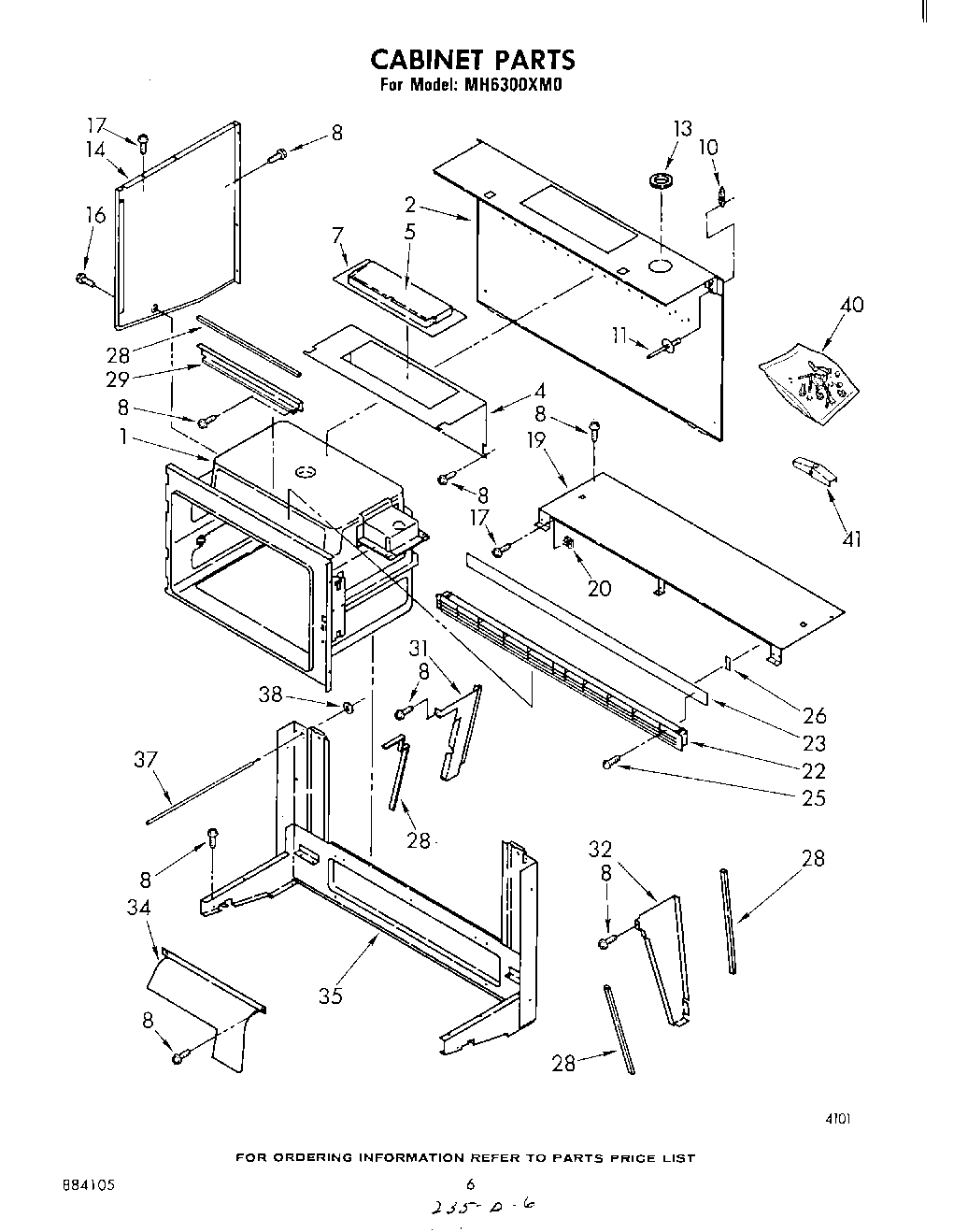

MH6300XM0 04 – CABINET

MH6300XM0 04 – CABINET

Written by

in

MH6300XM0 04 – CABINET

Products

PositionProduct
1Cavity Assembly (Not Serviceable)
2Support, Back (Includes Illus. 4, 5, 7, 10 & 13)
4Support, Damper
5Shutter, Damper
7Frame, Damper
8WP90767 Whirlpool Screw
10Receptacle
11Rivet
13Bushing, Power Cord
14NO LONGER AVAILABLE
14Side Panel (Left Side)
16WP965173 Whirlpool Dishwasher Screw
17W11693756 Whirlpool Screw Assembly
19Filler, Top
20Nut, Cage 1/4-20 (2)
22Grille, Vent
23Filter, Vent Grille
25Screw, 8AB x 1-1/4 (3)
26Retainer, Filter (3)
28Foam Seal
29Cover, Baffle Exhaust
31Baffle, Left Exhaust
32Baffle, Right Exhaust
34Baffle, Rear Exhaust
35Support, Lower
37Extension, 1/4 Turn Rod
38Retainer, 1/4 Turn Rod Extension
40Installation Hardware (Includes Templates)
41Nut, Toggle (Metal)
