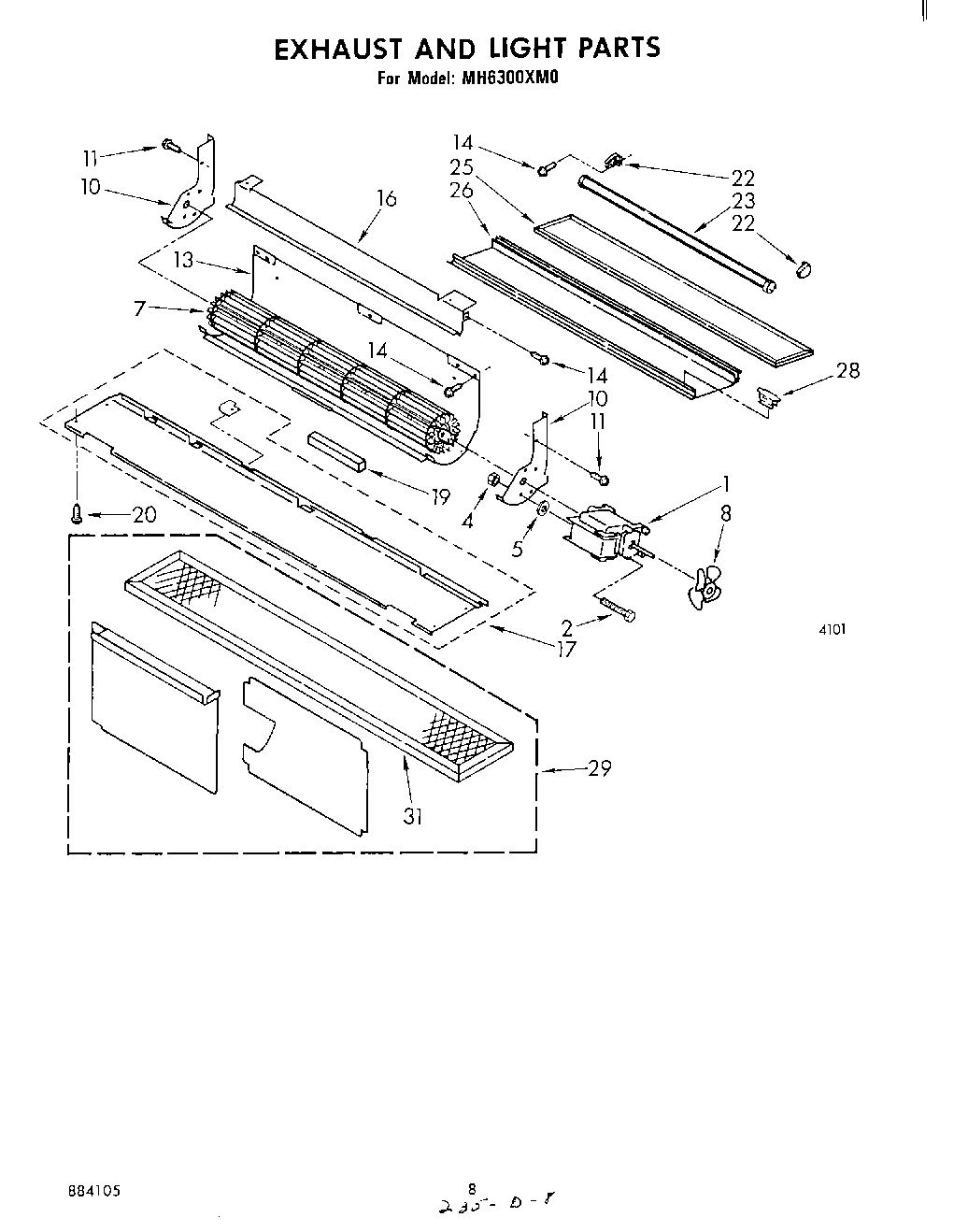

MH6300XM0 05 – EXHAUST AND LIGHT
Written by
in
MH6300XM0 05 – EXHAUST AND LIGHT
Products
Position
Product
1
Motor, Blower
2
Screw, 8-32 (2)
4
WP486255 Whirlpool Air Conditioner Nut
5
Grommet, Motor Mount (4)
7
Wheel, Blower
8
Fan, Motor Cooling
10
End Cap, Blower (Right Side)
10
End Cap, Blower (Left Side (Includes Bearing))
11
WP3177991 Whirlpool Screw
13
Scroll, Blower
14
WP90767 Whirlpool Screw
16
Lip, Vent
17
Panel, Bottom
19
Cushion
20
WP965173 Whirlpool Dishwasher Screw
22
Holder, Light
23
Bulb, Fluorescent
25
Filter, Mesh
26
Lens, Light
28
Clip, Light Lens (5)
29
RCH6000 Recirculating Kit
31
Filter, Charcoal
←
