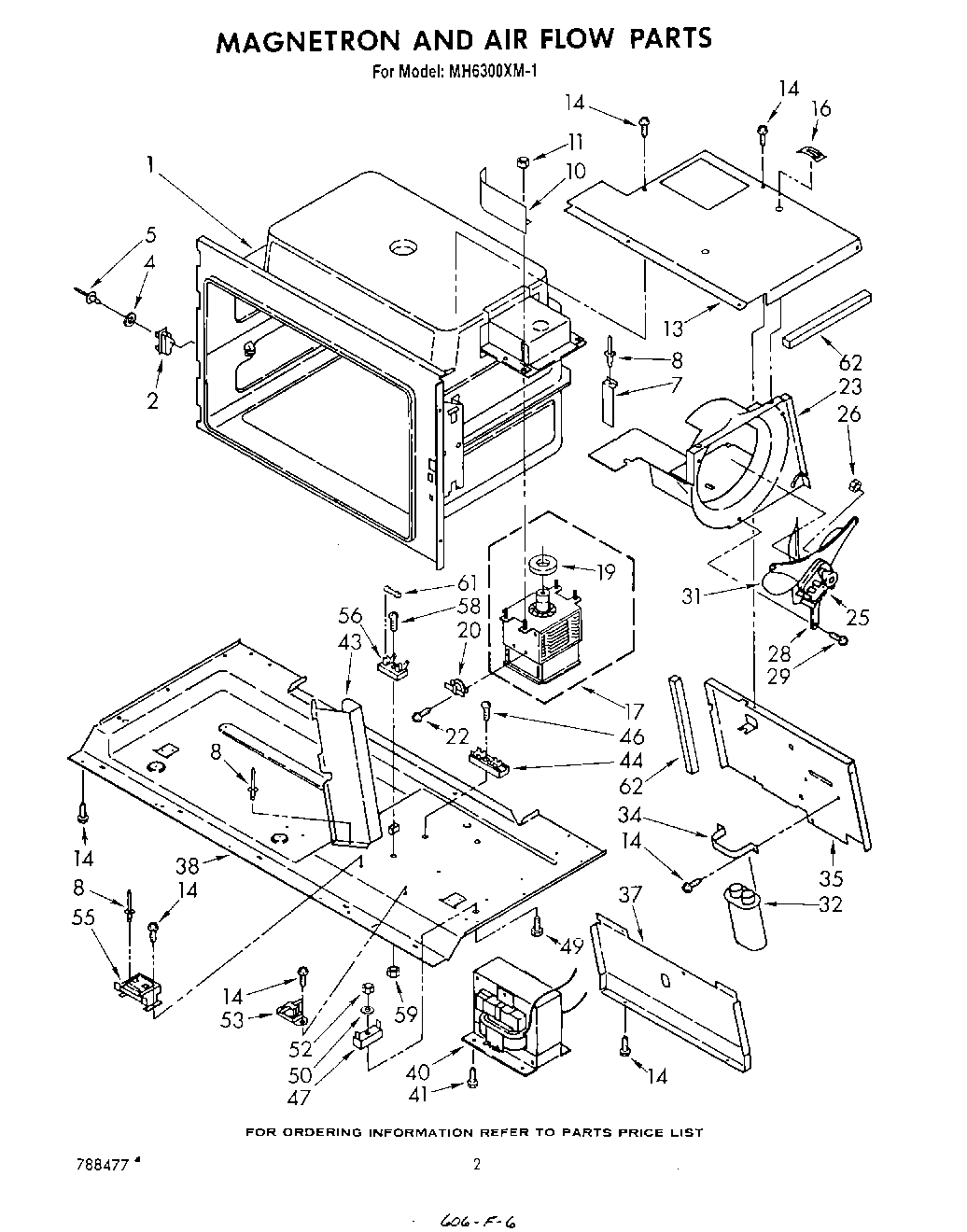

MH6300XM1 02 – MAGNETRON AND AIR FLOW , LITERATURE

Products

Position	Product
	Cookbook
	Guide, Use & Care
	Instructions, Installation
	RCK600 Filler Kit
	Filler (3 Oz.)
	List, Repair Parts
	RCH6000 Recirculating Kit
	WP482338 Whirlpool Refrigerator Adhesive
1	Cavity Assembly (Not Serviceable)
2	Protector, Thermal (Cavity)
4	NO LONGER AVAILABLE
5	Pop Rivet
7	Deflector, Air
8	Pop Rivet (8)
10	Baffle, Waveguide
11	Nut, 5mm (4)
13	Top, Component Cover
14	WP90767 Whirlpool Screw
16	Clip, Retainer (2)
17	Magnetron (Includes Illus. 19)
19	Gasket, Magnetron
20	Protector, Thermal (Magnetron)
22	Screw, 3mm (2)
23	Duct, Magnetron
25	Motor, Blower
26	Nut, 6-32 (2)
28	Bracket, Blower
29	WP489069 Whirlpool Compactor Screw
31	Fan Blade
32	Capacitor
34	Bracket, Capacitor
35	NO LONGER AVAILABLE
37	Cover, Rear Bottom
38	Base (Not Serviceable)
40	Transformer
41	S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
43	Reflector, Light
44	Block, Terminal
47	Diode
49	Screw, 8-32 x 3/8 Phillips Pan Head
50	Lockwasher No.8
52	WP486255 Whirlpool Air Conditioner Nut
53	Switch, Thermal
55	Ballast, Light
56	Holder, Fuse
58	Screw, 4-40 x 1/4 Phillips Pan Head
59	Nut, 4-40
61	Fuse (15 Amp)
62	Foam Seal
62	Cord Brown
62	Paint, Cord Brown Spray (13 Oz.)
