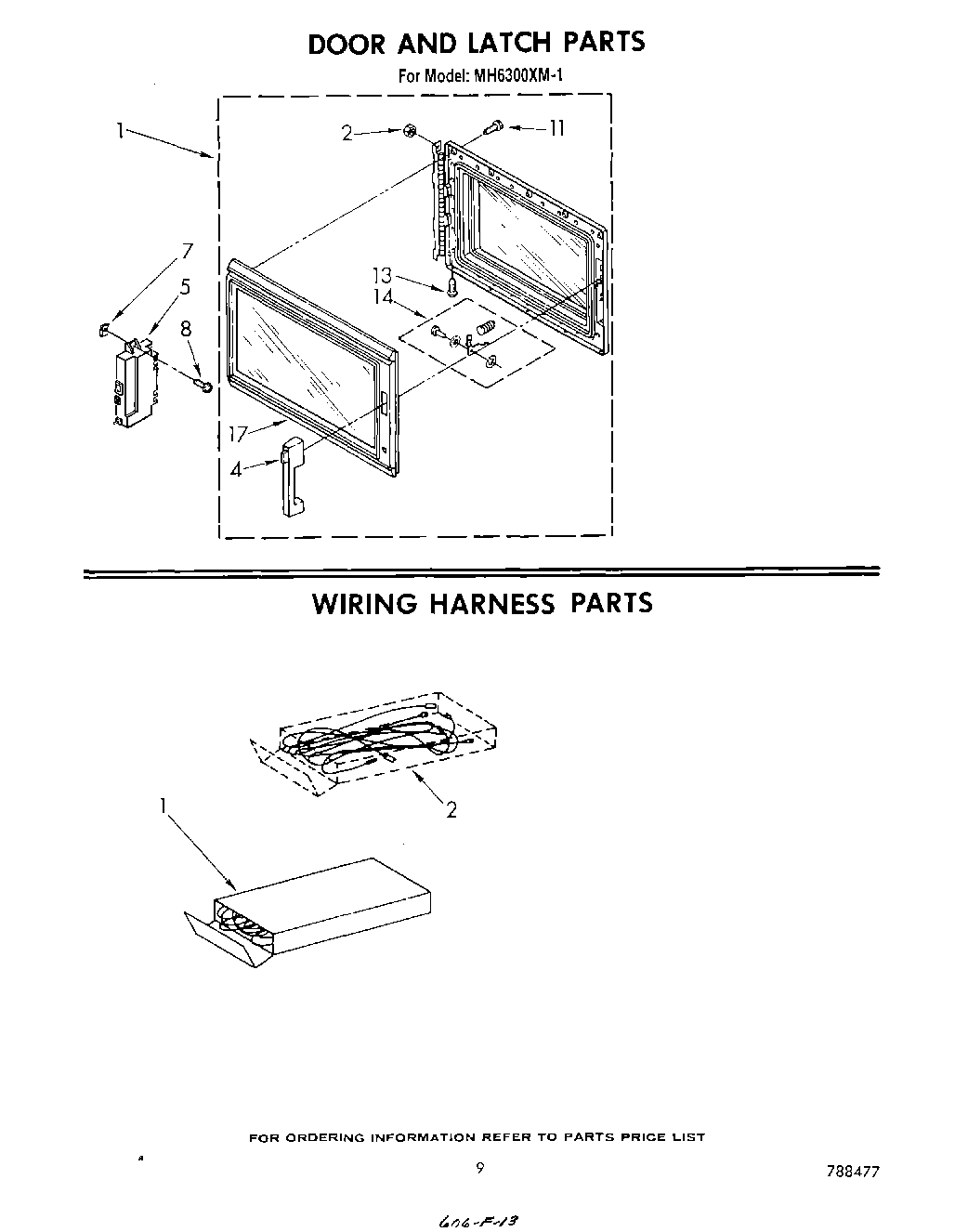

MH6300XM1 06 – DOOR AND LATCH , WIRING HARNESS

Written by

Products

Position	Product
1	Complete Wiring Harness
1	Door, Complete
2	WP776338 Whirlpool Compactor Nut
2	High Voltage Lead Kit (Magnetron)
4	Handle
5	Module, Interlock Switch
7	Clip, Switch Mounting (2)
8	WP250830 Whirlpool Refrigerator Screw
11	Screw, 6-18 x 1/4 (5)
13	WP965173 Whirlpool Dishwasher Screw
14	Door Latch
17	Door, Outer
