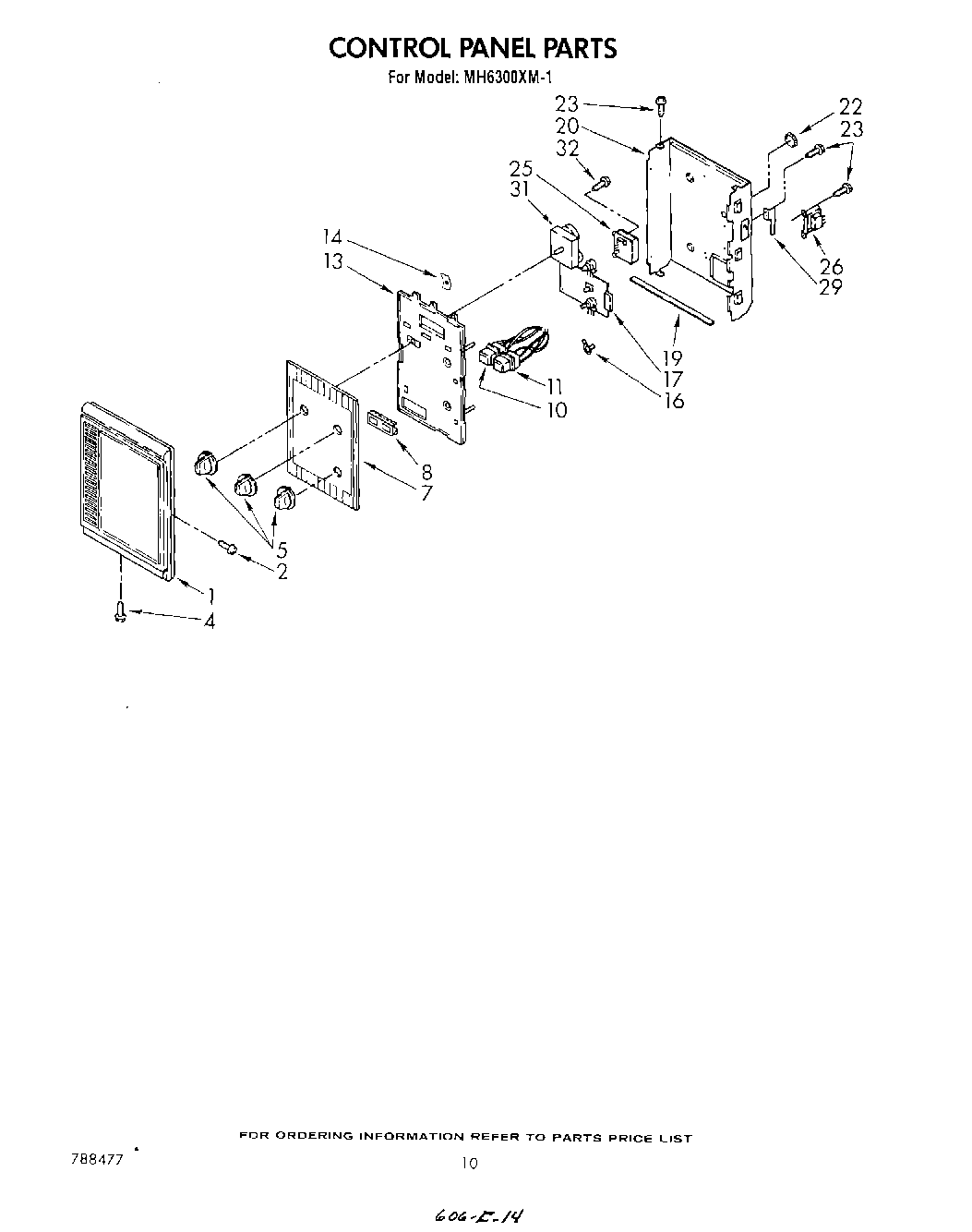

MH6300XM1 07 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Screw, 6AB x 3/8 Pozidriv Truss Head (4)
4	WP965173 Whirlpool Dishwasher Screw
5	Knob (3)
7	Control Panel
8	Bezel, Switch (2)
10	Switch, Fan
11	Switch, Light
13	Bracket, Component Support
14	Clip, Support Bracket (4)
16	Washer, Grounding
17	Variable Power Control
19	Baffle, Intrusion
20	Housing, Control Panel
22	Bushing
23	WP90767 Whirlpool Screw
25	Triac
26	Transformer, Low Voltage
29	Bracket, Control Panel Housing
31	Timer, 45 Min.
32	Screw, 6AB x 3/8 Hex Washer Head (4)
