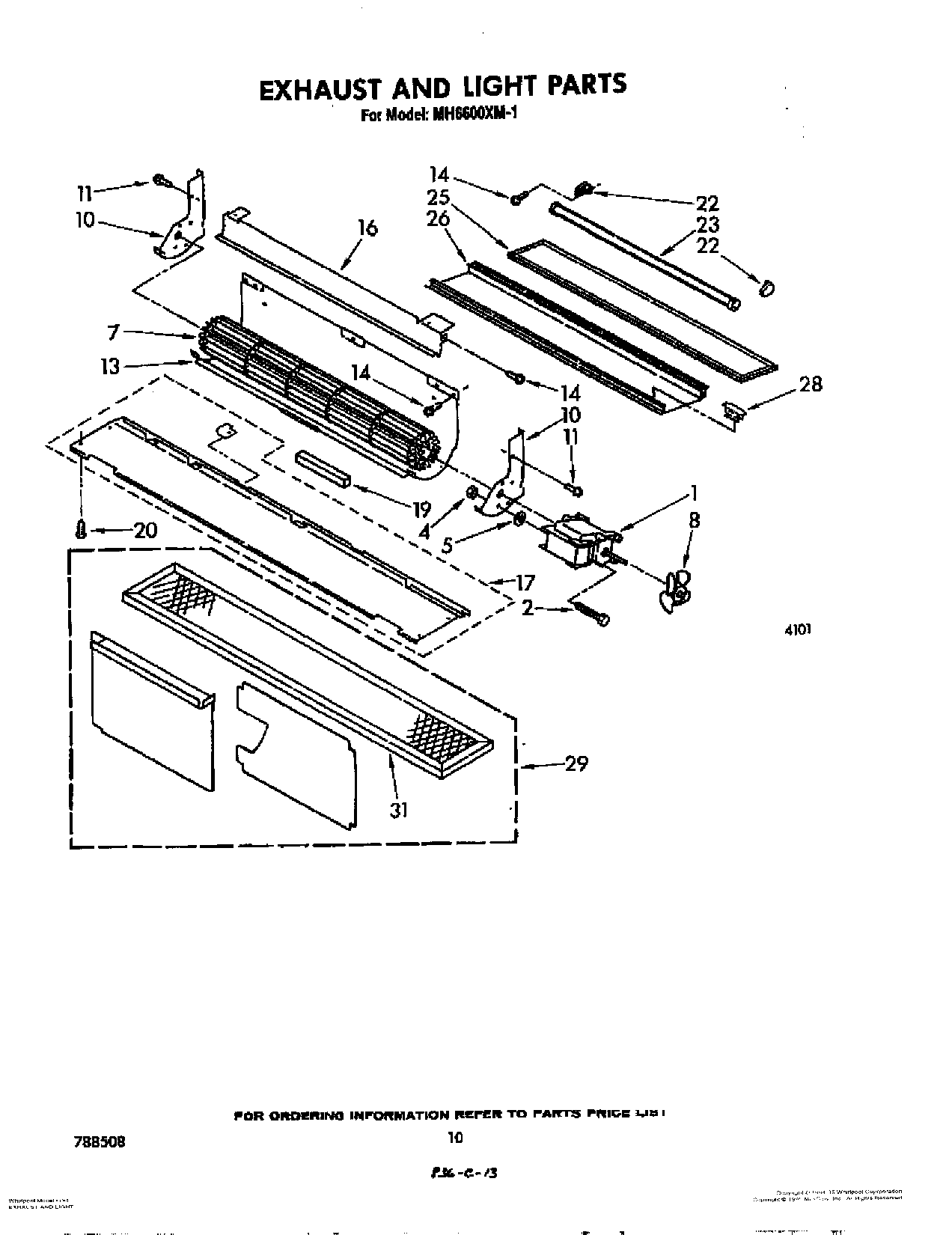

MH6600XM1 07 – EXHAUST AND LIGHTadmin2025-04-26T10:32:40+00:00MH6600XM1 07 – EXHAUST AND LIGHT
Products
| Position | Product |
|---|
| 1 | Motor, Blower |
| 2 | Screw, 8-32 (2) |
| 4 | WP486255 Whirlpool Air Conditioner Nut |
| 5 | Grommet, Motor Mount (4) |
| 7 | Wheel, Blower |
| 8 | Fan, Motor Cooling |
| 10 | End Cap, Blower (Right Side) |
| 10 | End Cap, Blower (Left Side (Includes Bearing)) |
| 11 | WP3177991 Whirlpool Screw |
| 13 | Scroll, Blower |
| 14 | WP90767 Whirlpool Screw |
| 16 | Lip, Vent |
| 17 | Panel, Bottom |
| 19 | Cushion |
| 20 | WP965173 Whirlpool Dishwasher Screw |
| 22 | Holder, Light |
| 23 | Bulb, Fluorescent |
| 25 | Filter, Mesh |
| 26 | Lens, Light |
| 28 | Clip, Light Lens (5) |
| 29 | RCH6000 Recirculating Kit |
| 31 | Filter, Charcoal |
