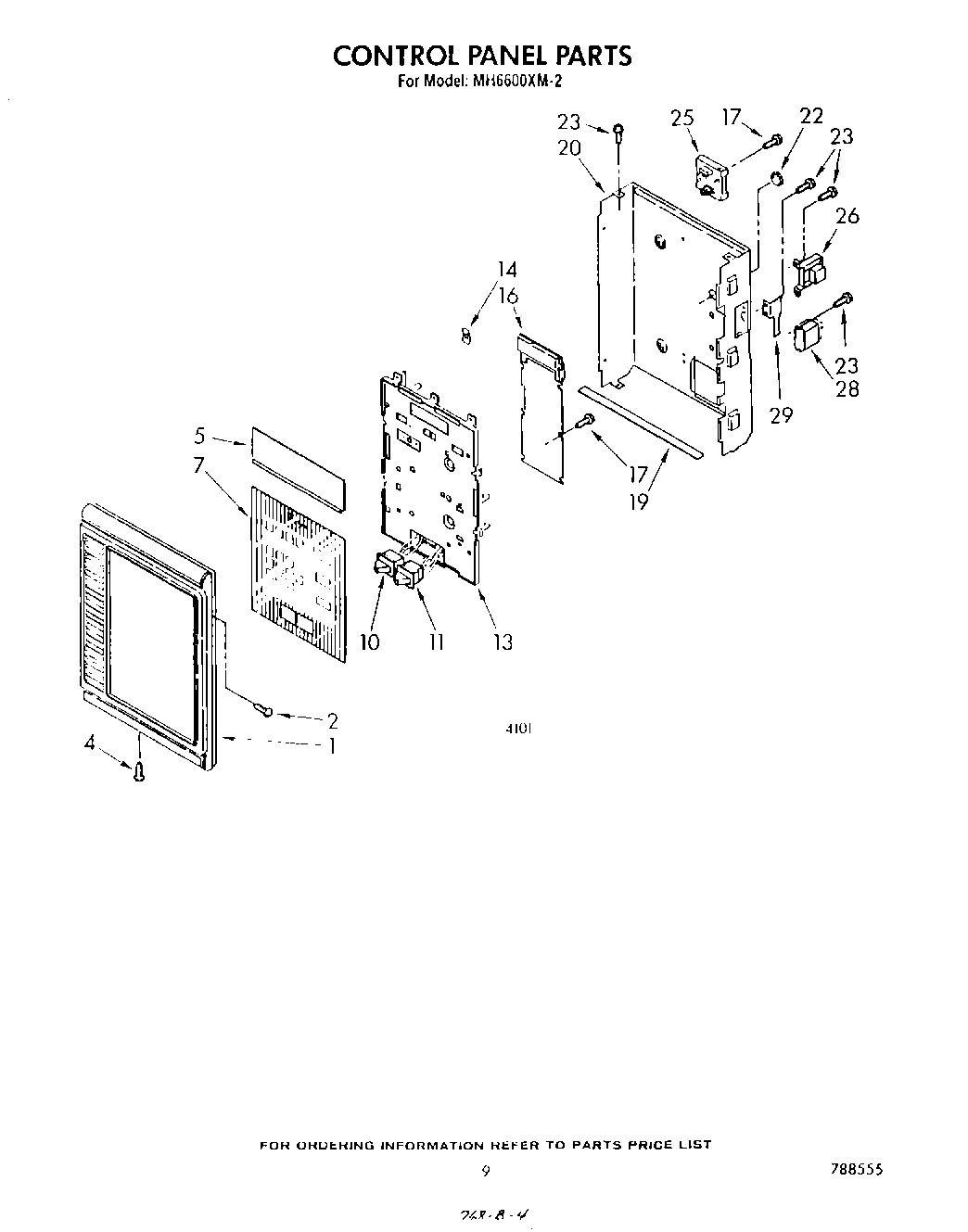

MH6600XM2 06 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Screw, 6AB x 3/8 Pozidriv Truss Head (4)
4	WP965173 Whirlpool Dishwasher Screw
5	Window, Display
7	Membrane, Switch
10	WP4314961 Whirlpool Lite Switch
13	Bracket, Component Support
14	Clip, Support Bracket (4)
16	Microcomputer
17	Screw, 6AB x 3/8 Hex Washer Head (4)
19	Baffle, Intrusion
20	Housing, Control Panel
22	Bushing
23	WP90767 Whirlpool Screw
25	Triac
26	Transformer, Low Voltage
28	Relay
29	Bracket, Control Panel Housing
