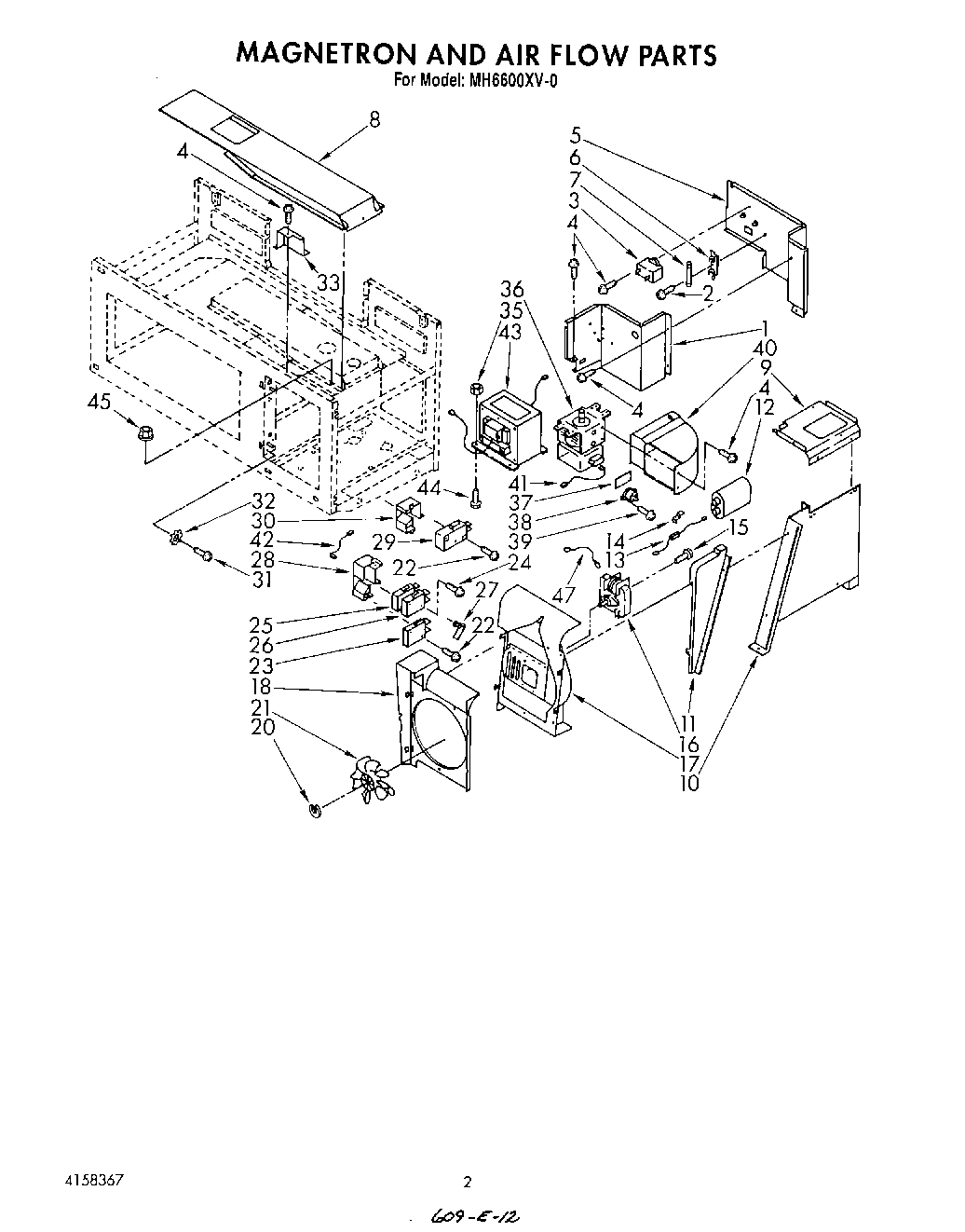

MH6600XV0 02 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Vent Duct
2	Screw (2)
3	Motor Condenser
4	Screw
5	Air Guide
6	Holder, Fuse
7	Fuse
8	Motor Base
9	Air Guide
10	Air Guide
11	Fan Cover Bracket
12	Capacitor
13	Diode
14	Capacitor Bracket
15	Screw (2)
16	Fan Motor
17	Fan Cover
18	Fan Cover Back
20	E-Ring
21	Propeller
22	Screw (2)
23	Micro Switch (Secondary)
24	Screw
25	Micro Switch (Monitor)
26	4392027 Whirlpool Microwave Primary Switch
27	Lever, Switch
28	Latch Board Lower
30	Latch Board Upper
31	Special Screw (2)
32	Toothed Washer
33	Fan Guide
35	Nut (2)
36	Magnetron
37	Thermo Insulator
38	Thermostat
39	Screw (2)
40	Air Duct
41	Cable Assy.
42	Cable Assy.
43	Transformer
44	Screw (2)
45	Magnetron Nut (4)
47	Lead Wire
