MH6600XV0 03 – INSTALLATION

MH6600XV0 03 – INSTALLATION

Written by

in

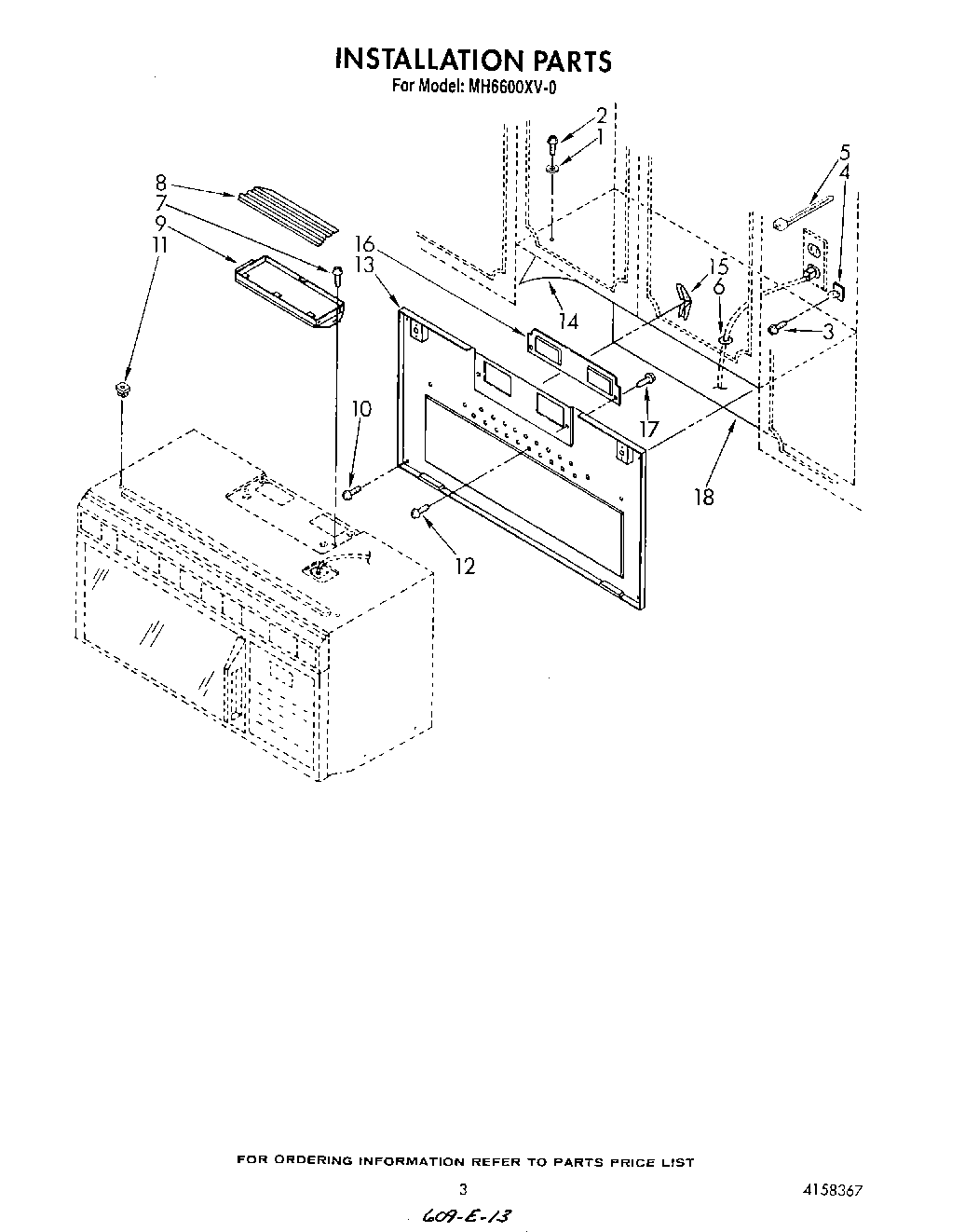

MH6600XV0 03 – INSTALLATION

Products

PositionProduct
1Washer
2Screw
3Screw
4Retainer Holder (2)
5WPW10339879 Whirlpool Wire Tie
6Cord Bushing
7Screw (2)
8Exhaust Damper
9Exhaust Adapter
10WP8169704 Whirlpool Screw
11Top Cabinet Nut (2)
12Lag Screw
13Mounting Plate Assy.
14Top Cabinet Template
15Toggle Bolt
16Vent Cover
17Screw
18Wall Template
