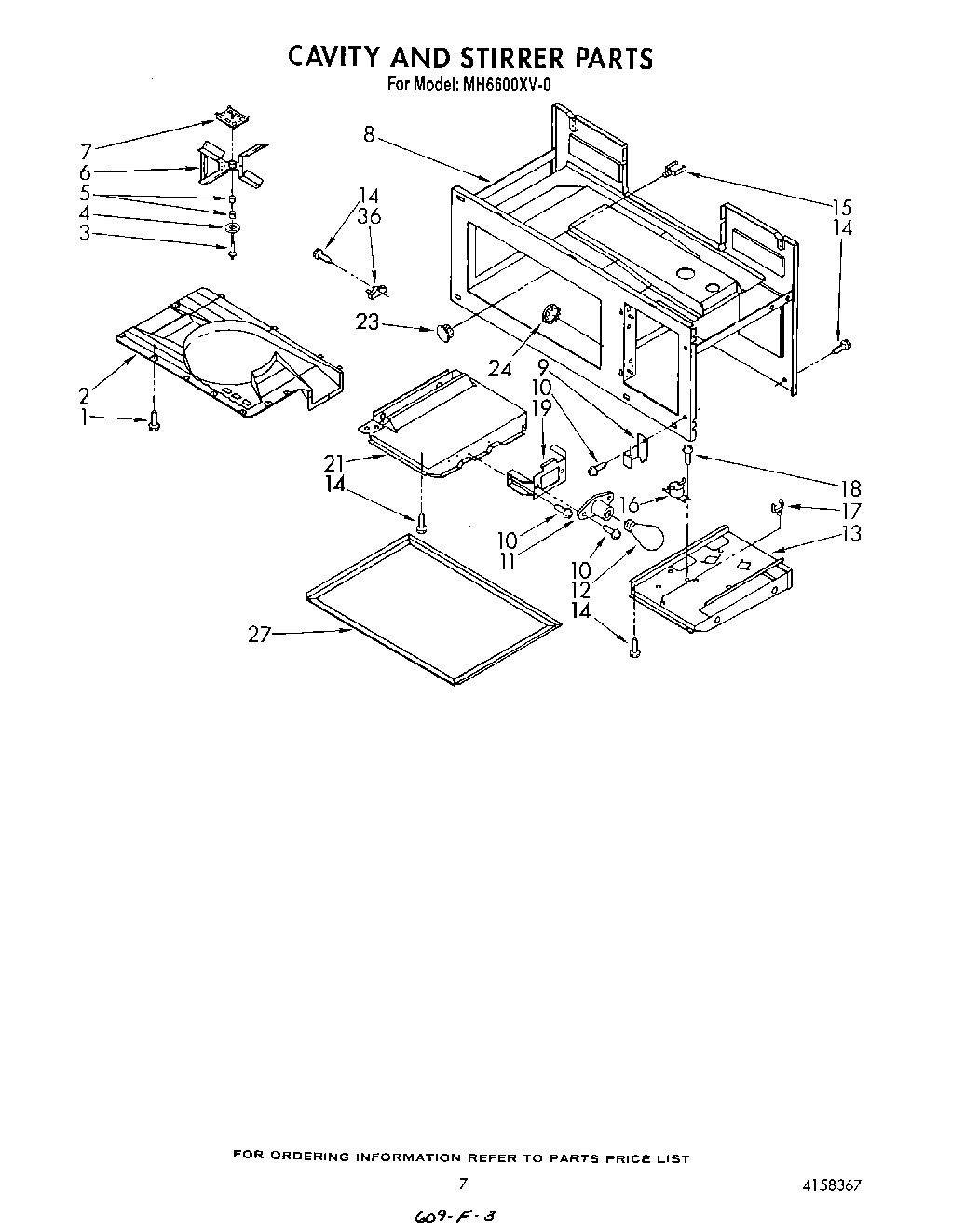

MH6600XV0 07 – CAVITY AND STIRRER

MH6600XV0 07 – CAVITY AND STIRRER

Written by

in

MH6600XV0 07 – CAVITY AND STIRRER

Products

PositionProduct
1Screw (9)
2Stirrer Fan Cover
3Stirrer Fan Shaft
4Sliding Washer
5Shaft Bushing
6Stirrer Fan Assy.
7Fan Shaft Holder
8Oven Cavity (Not Serviceable)
9Cntl. Hinge Assy. (2)
10Screw
11Lamp Holder
128206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
13Bottom Plate R.H.
14Screw (2)
15Wire Holder (4)
16Base Thermostat
17Wire Holder (2)
18Screw (2)
19Cooktop Lamp Bracket
21Bottom Plate L.H.
23Hole Plug
24Hole Plug (4)
27Ceramic Plate Assy.
36Fuse, Thermal
