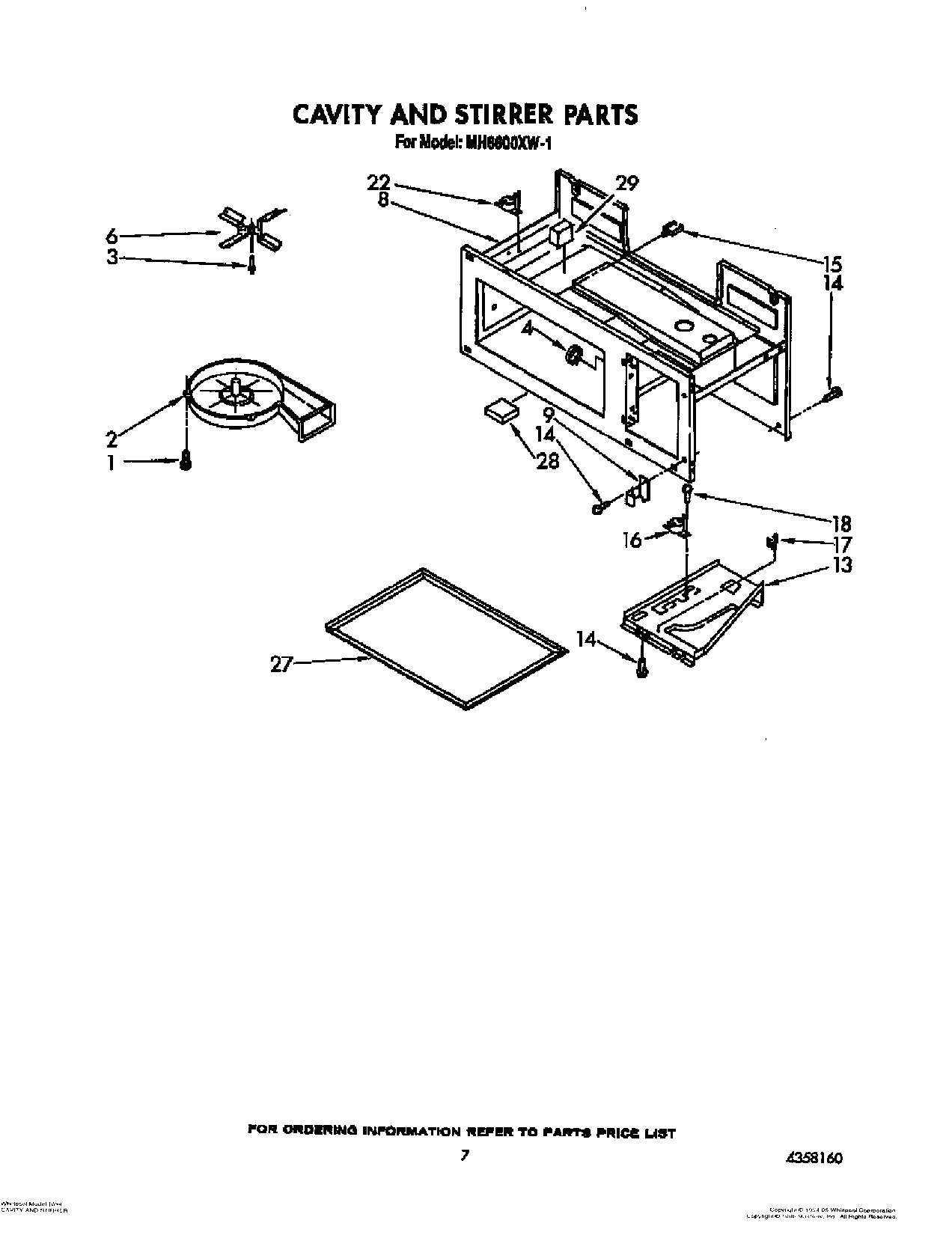

MH6600XW1 07 – CAVITY AND STIRRER

MH6600XW1 07 – CAVITY AND STIRRER

Written by

in

MH6600XW1 07 – CAVITY AND STIRRER

Products

Position	Product
1	WP3196557 Whirlpool Screw
2	Stirrer Fan Cover
3	Stirrer Fan Shaft
4	Plug, Cavity
6	Stirrer Fan Assy.
8	Oven Cavity (Not Serviceable)
9	Cntl. Hinge Assy. (2)
13	Bottom Plate
14	W11380570 Whirlpool Microwave Screw
15	Wire Holder (4)
16	Base Thermostat
17	Wire Holder (2)
18	Screw (2)
22	Thermostat, Oven
27	Ceramic Plate
28	Seal, Cavity (Bottom)
29	Seal, Cavity (Top)
