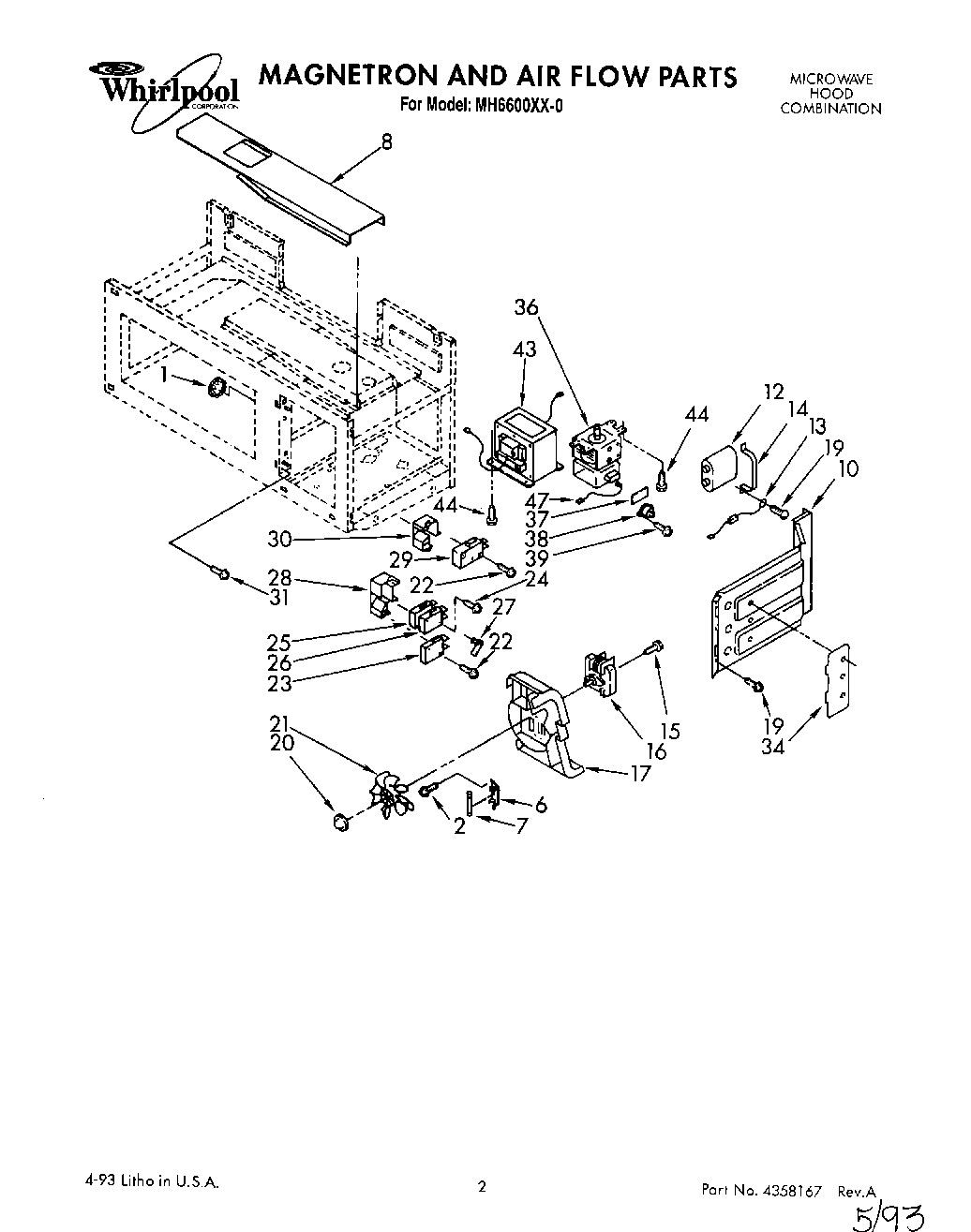

MH6600XX0 01 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Temp Hole Cap
2	W10815455 Whirlpool Screw
6	Holder, Fuse
7	Fuse
8	Motor Base
10	Air Guide (Side)
12	Capacitor – H.V.
13	Diode Cable
14	Capacitor Bracket
15	Screw (2)
16	Fan Motor
17	Fan Cover Front
19	W11380570 Whirlpool Microwave Screw
20	Push Nut
21	Blade, Fan
22	Screw (2)
23	4392027 Whirlpool Microwave Primary Switch
24	Screw
27	Lever, Switch
28	Latch Board Lower
30	Latch Board Upper
31	Special Screw (2)
34	Cover, Air
36	Magnatron
37	Bracket, Thermostat
38	Thermostat
39	Screw (2)
43	Transformer
44	WP3400094 Whirlpool Screw
47	Lead Wire
