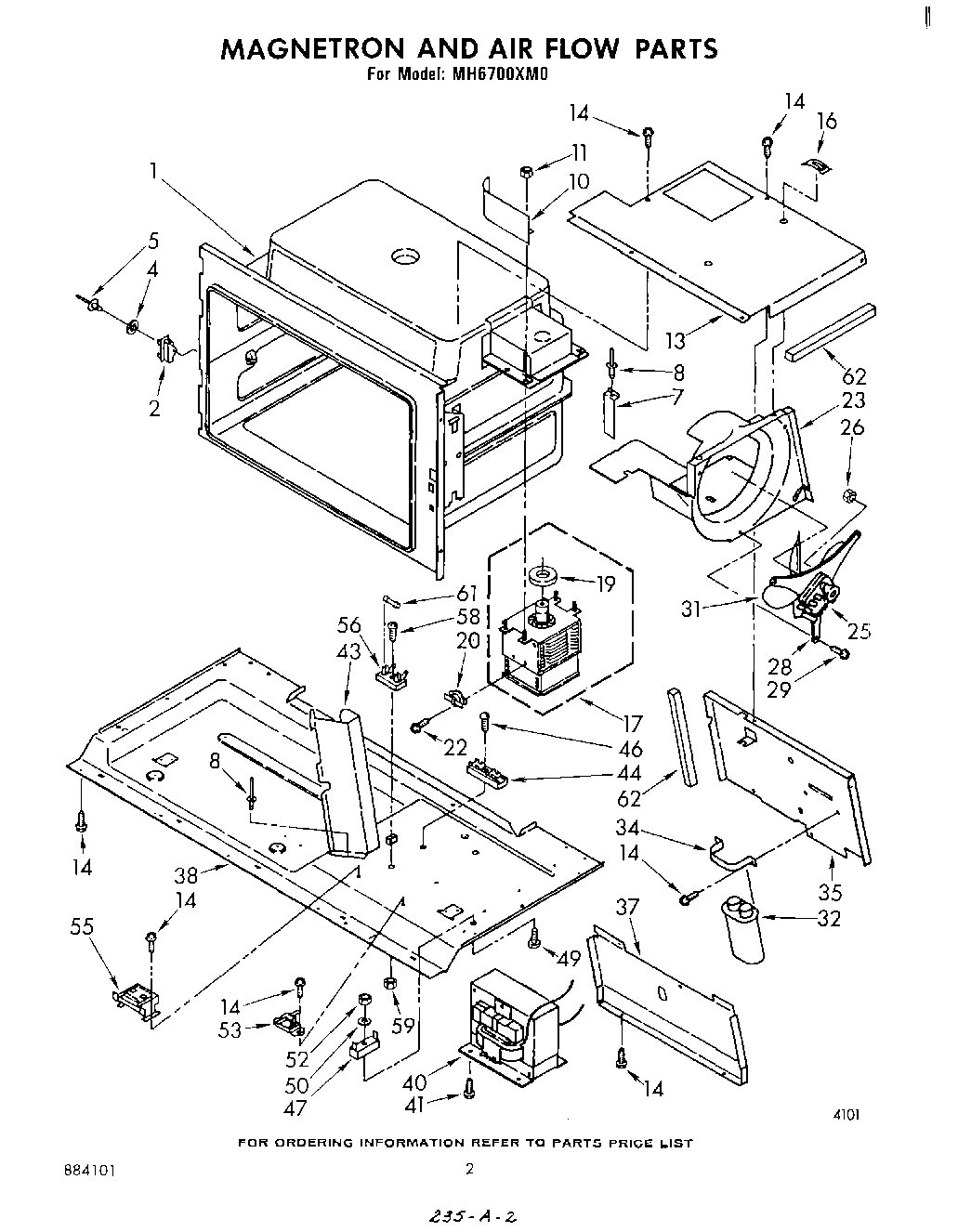

MH6700XM0 02 – MAGNETRON AND AIR FLOW , LIT/OPTIONAL

MH6700XM0 02 – MAGNETRON AND AIR FLOW , LIT/OPTIONAL

Written by

in

MH6700XM0 02 – MAGNETRON AND AIR FLOW , LIT/OPTIONAL

Products

PositionProduct
Guide, Use & Care
Cookbook
Instructions, Installation
List, Repair Parts
1Cavity Assembly (Not Serviceable)
2Protector, Thermal (Cavity)
4NO LONGER AVAILABLE
5Pop Rivet
7Deflector, Air
8Pop Rivet (8)
10Baffle, Waveguide
11Nut, 5mm (4)
13Top, Component Cover
14WP90767 Whirlpool Screw
16Clip, Retainer (2)
17Magnetron (Includes Illus. 19)
19Gasket, Magnetron
20Protector, Thermal (Magnetron)
22Screw, 3mm (2)
23Duct, Magnetron
25Motor, Blower
26Nut, 6-32 (2)
28Bracket, Blower
29WP489069 Whirlpool Compactor Screw
31Fan Blade
32Capacitor
34Bracket, Capacitor
35NO LONGER AVAILABLE
37Cover, Rear Bottom
38Base (Not Serviceable)
40Transformer
41S\cr\ew, 10-32 x 3/8 Hex Washer Head (4)
43Reflector, Light
44Block, Terminal
47Diode
49Screw, 8-32 x 3/8 Phillips Pan Head
50Lockwasher No.8
52WP486255 Whirlpool Air Conditioner Nut
53Switch, Thermal
55Ballast, Light
56Holder, Fuse
58Screw, 4-40 x 1/4 Phillips Pan Head
59Nut, 4-40
61Fuse (15 Amp)
62RCK600 Filler Kit
62Foam Seal
62Paint, Cord Brown Spray (13 Oz.)
62Cord Brown
62WP482338 Whirlpool Refrigerator Adhesive
62RCH6000 Recirculating Kit
