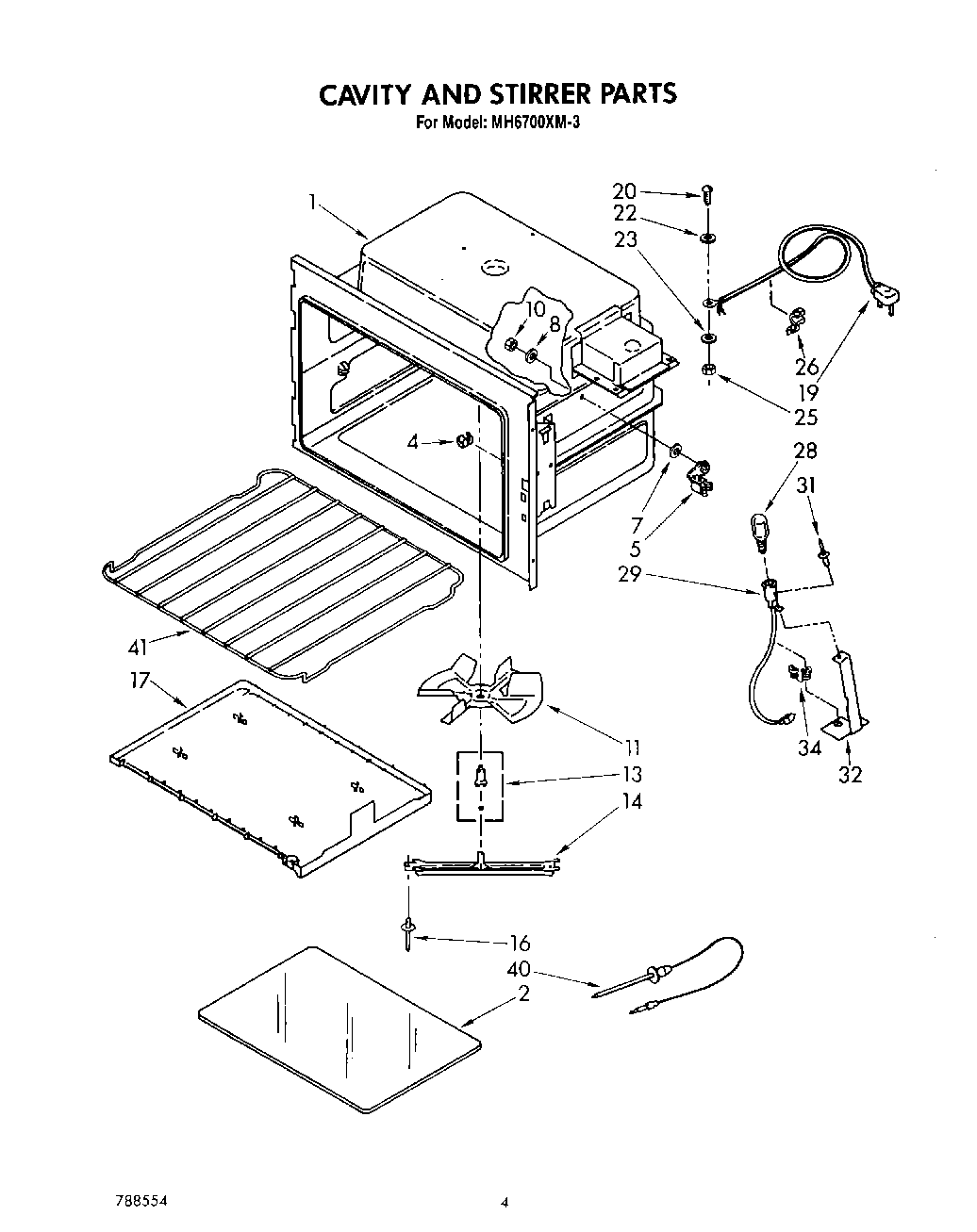

MH6700XM3 03 – CAVITY AND STIRRER

Products

Position	Product
1	Cavity Assembly (Not Serviceable)
2	WP482338 Whirlpool Refrigerator Adhesive
2	Shelf
4	Support, Rack (4)
5	Jack, Probe
7	Washer, 3/8
8	Lockwasher 3/8
10	Nut, 8/3-32
11	Blade, Stirrer
13	Insert, Stirrer (Includes Bearing)
14	Support Bar, Stirrer
16	Rivet
17	Cover, Stirrer
19	Cord, Power
20	Screw, 8-32 x 3/8
22	Washer, No.8
23	Lockwasher, No.8
25	WP486255 Whirlpool Air Conditioner Nut
26	Relief, Strain
28	Clip, Light Lens (5)
29	Socket, Lamp
31	Pop Rivet (8)
32	Slide, Lamp
34	NO LONGER AVAILABLE
40	Probe, Temperature
41	Rack
