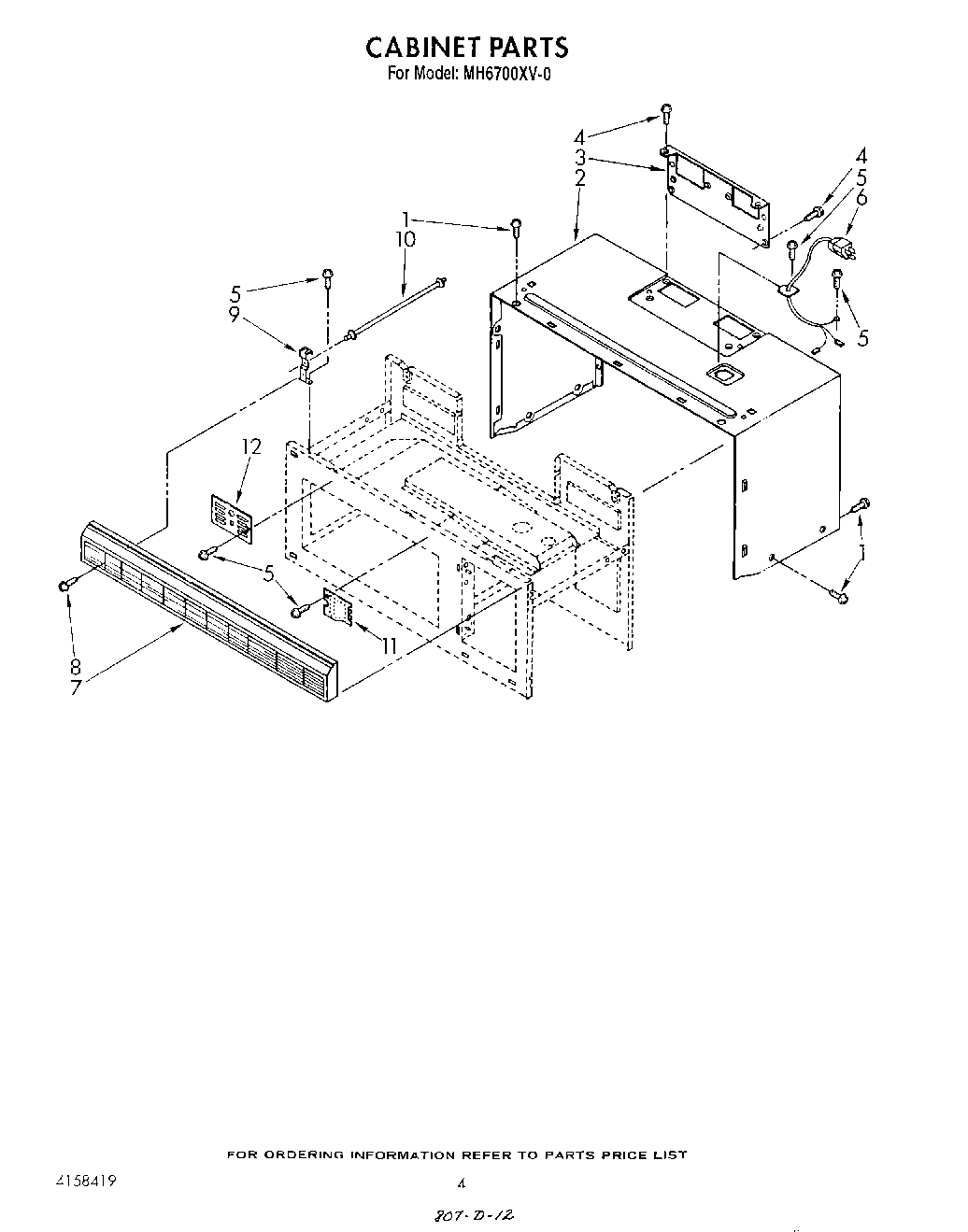

MH6700XV0 04 – CABINET
Products
| Position | Product |
|---|---|
| 1 | Screw |
| 2 | Outer Case |
| 3 | Vent Fan Mounting Bracket |
| 4 | Screw (3) |
| 5 | Screw |
| 6 | Power Cord Assy. |
| 7 | Vent Grille |
| 8 | Screw (3) |
| 9 | Front Bracket |
| 10 | Mounting Rod |
| 11 | Sealed Plate R.H. |
| 12 | Sealed Plate L.H. |
