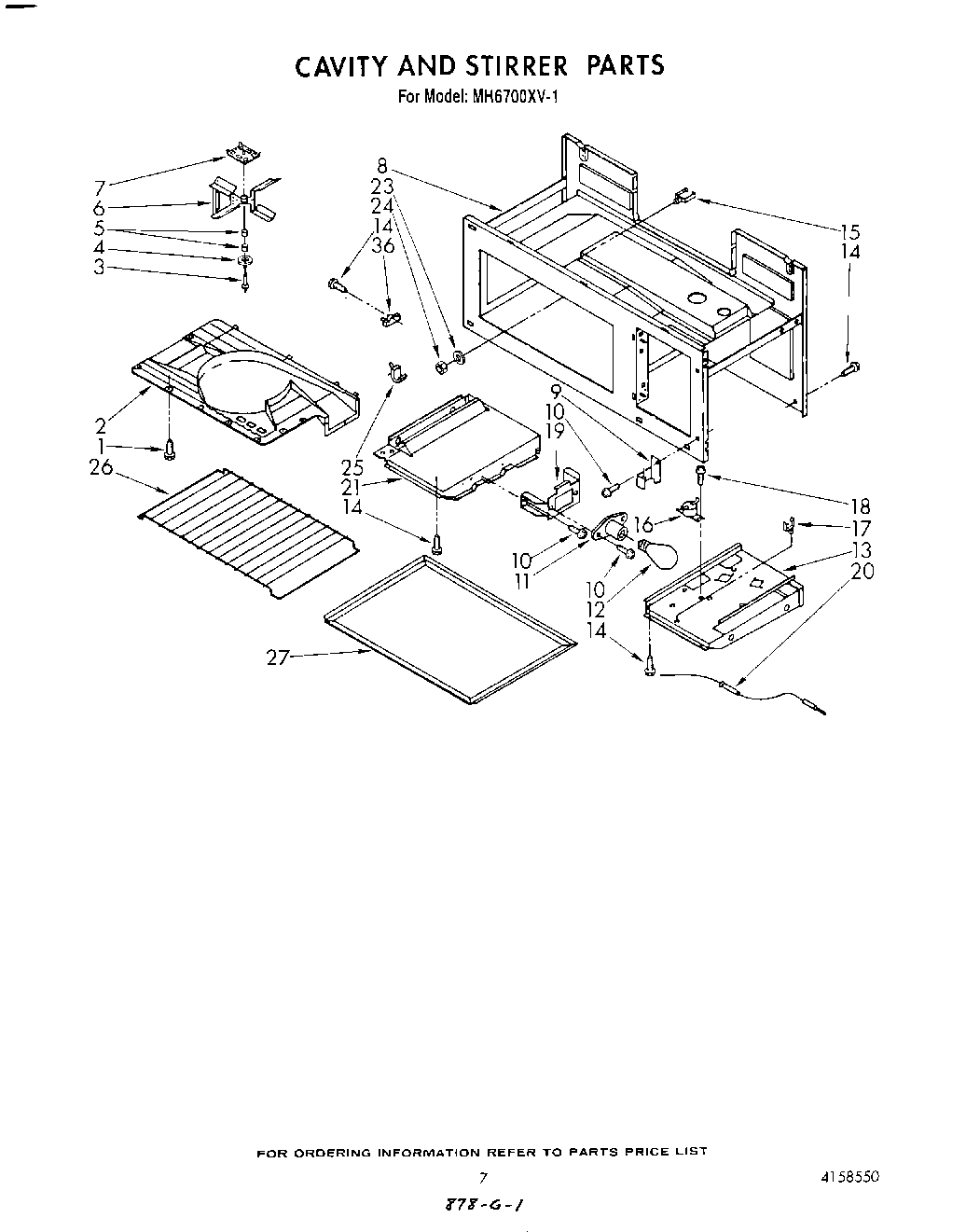

MH6700XV1 07 – CAVITY AND STIRRER

Products

Position	Product
1	Screw (9)
2	Stirrer Fan Cover
3	Stirrer Fan Shaft
4	Sliding Washer
5	Shaft Bushing
6	Stirrer Fan Assy.
7	Fan Shaft Holder
8	Oven Cavity (Not Serviceable)
9	Cntl. Hinge Assy. (2)
10	Screw
11	Lamp Holder
12	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
13	Bottom Plate R.H.
14	Screw (2)
15	Wire Holder (4)
16	Base Thermostat
17	Wire Holder (2)
18	Screw (2)
19	Cooktop Lamp Bracket
20	Probe
21	Bottom Plate L.H.
23	Washer
24	Nut
25	WP3149478 Whirlpool Microwave Support
26	Rack Assy.
27	Ceramic Plate Assy.
36	Fuse, Thermal
