MH6700XW0 04 – CABINET

MH6700XW0 04 – CABINET

Written by

in

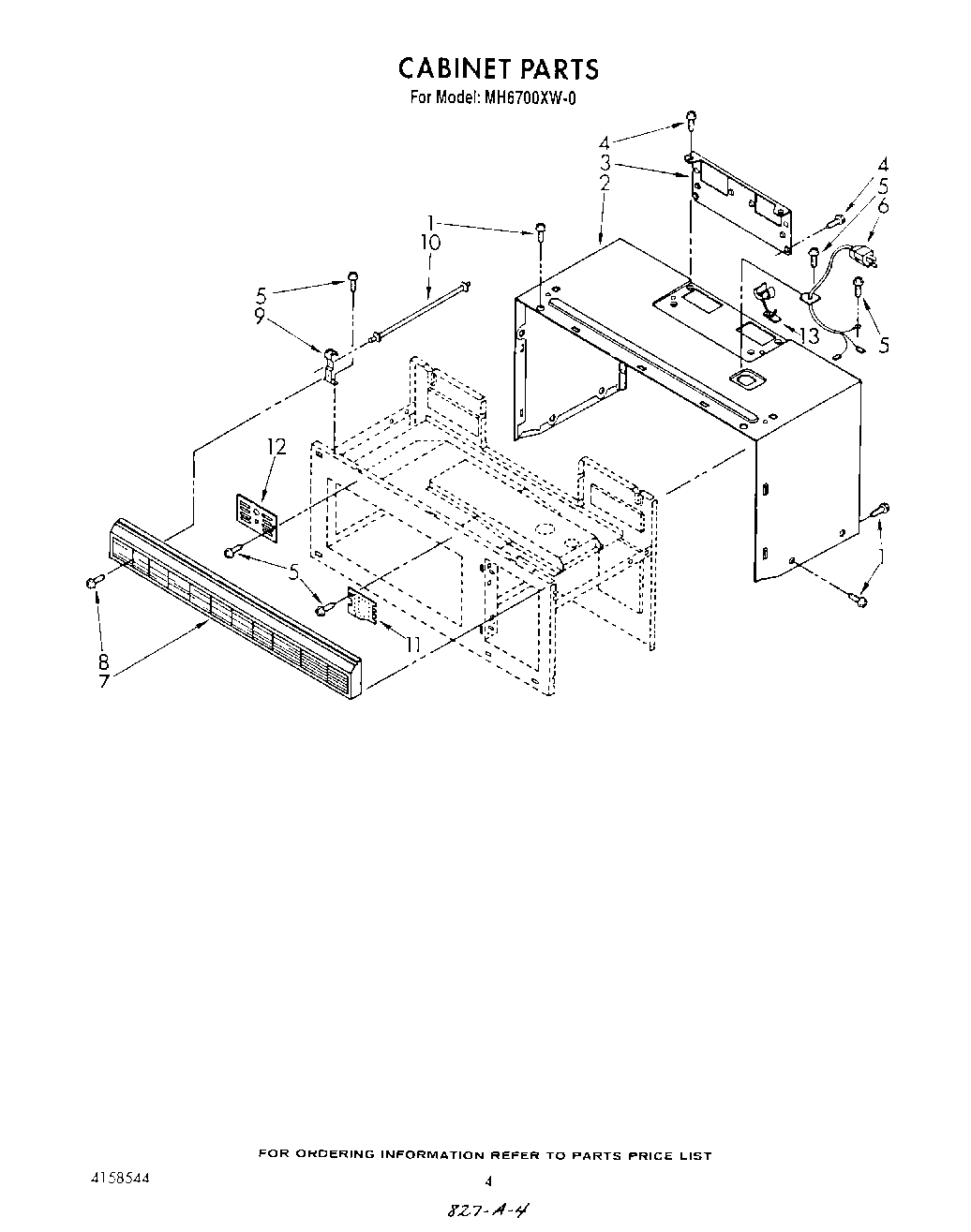

MH6700XW0 04 – CABINET

Products

PositionProduct
1Screw
2Outer Case
3Vent Fan Mounting Bracket
4Screw (3)
5Screw
6Power Cord Assy.
7Vent Grille
8Screw (3)
9Front Bracket
10Mounting Rod
11Sealed Plate R.H.
12Sealed Plate L.H.
13Strain Relief
