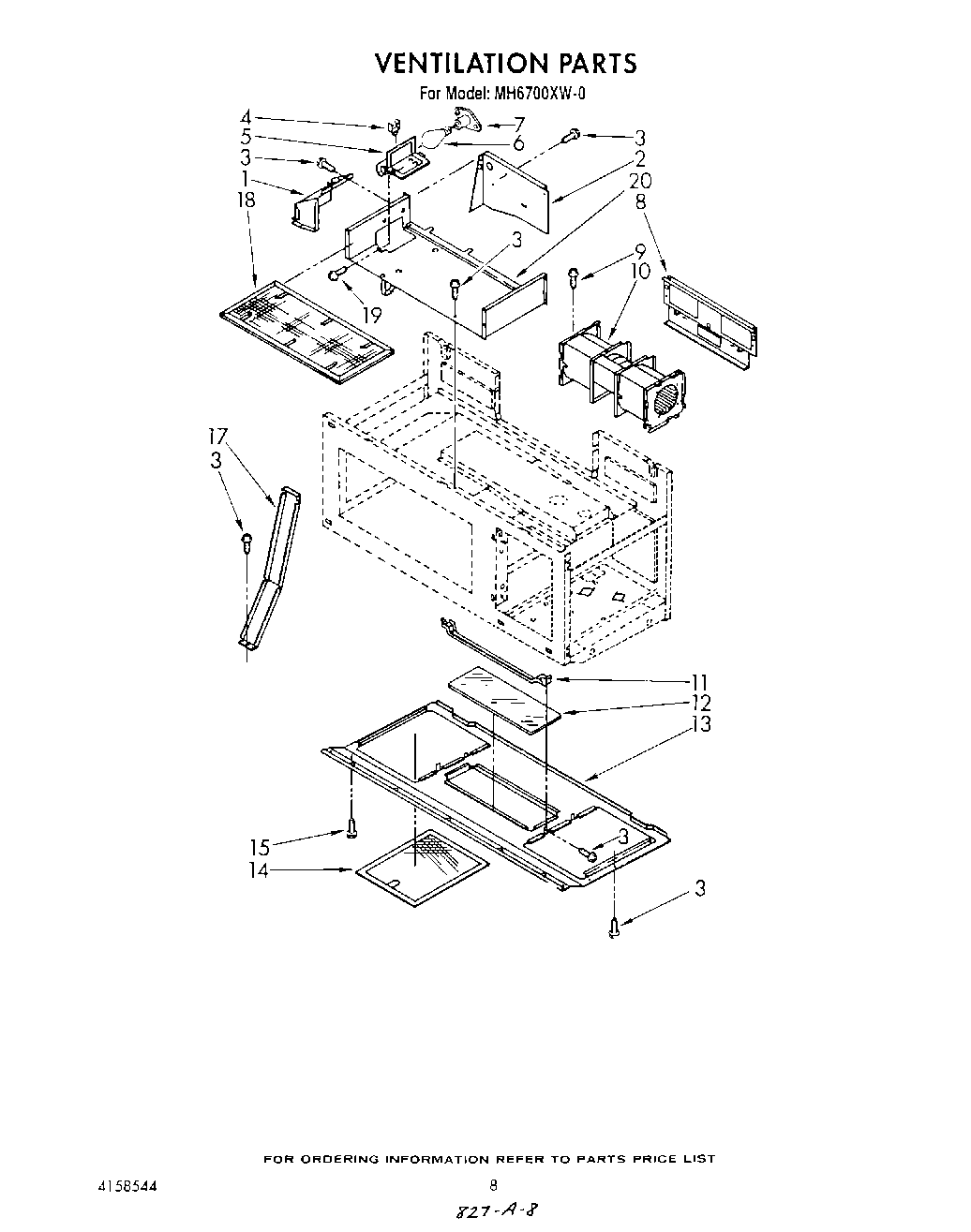

MH6700XW0 08 – VENTILATION

Products

Position	Product
1	Lamp Box
2	Vent Duct
3	Screw
4	Wire Holder (4)
5	Oven Lamp Cover Assy.
6	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
7	Lamp Holder
8	Front Vent Guide Assy.
9	Screw (2)
10	Ventilation Motor Assy.
11	Lamp Glass Mounting (2)
12	Cooktop Lamp Glass
13	Base Plate
14	Air Filter (2)
15	Screw (3)
17	Air Guide
18	Charcoal Filter Assy.
19	Screw
20	Vent Duct
