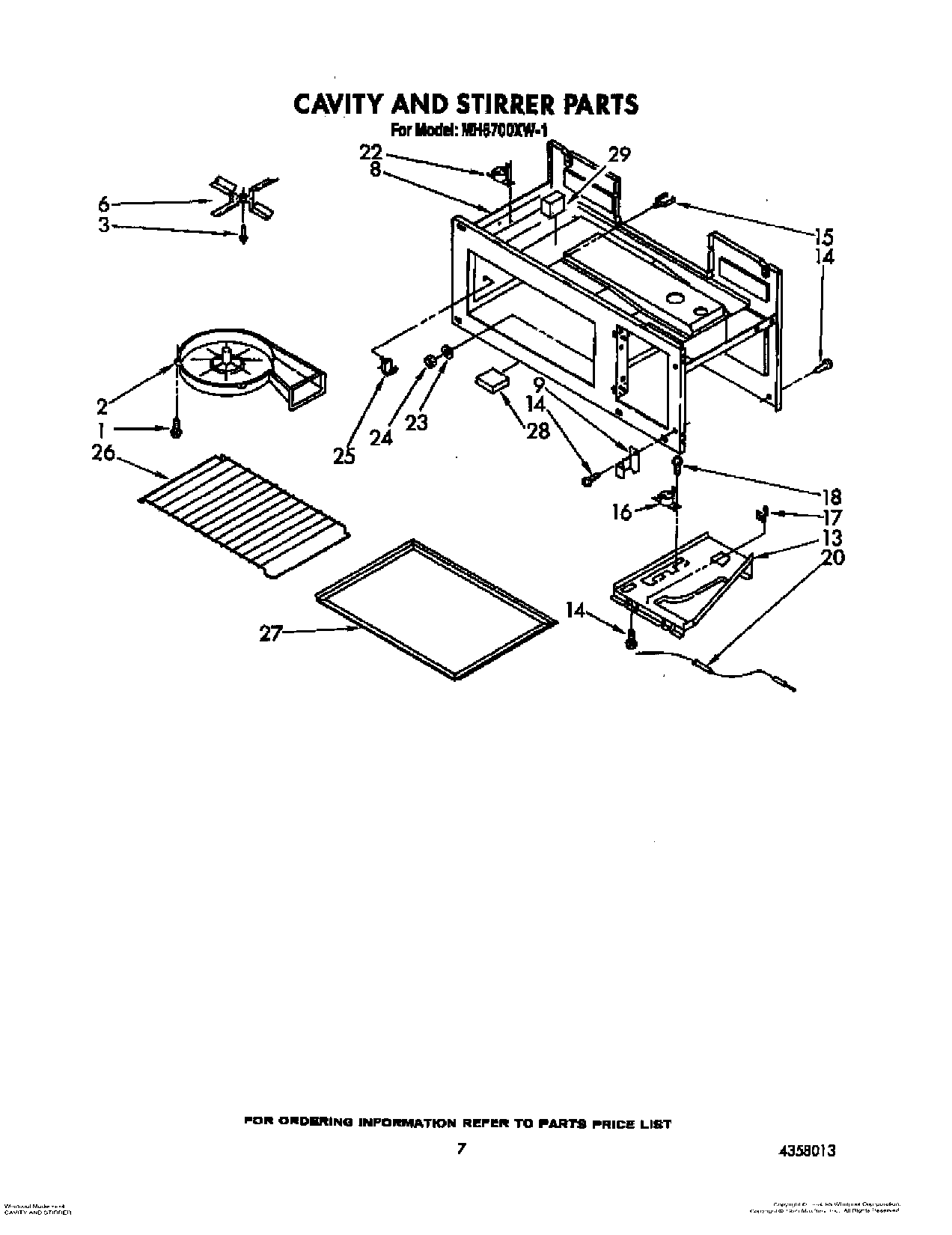

MH6700XW1 07 – CAVITY AND STIRRER

MH6700XW1 07 – CAVITY AND STIRRER

Written by

in

MH6700XW1 07 – CAVITY AND STIRRER

Products

PositionProduct
1WP3196557 Whirlpool Screw
2Stirrer Fan Cover
3Stirrer Fan Shaft
4Sliding Washer
6Stirrer Fan Assy.
8Oven Cavity (Not Serviceable)
9Cntl. Hinge Assy. (2)
13Bottom Plate
14W11380570 Whirlpool Microwave Screw
15Wire Holder (4)
16Base Thermostat
17Wire Holder (2)
18Screw (2)
20Probe
22Thermostat, Oven
23Washer
24Nut
25Rack Support (4)
26Rack Assy.
27Ceramic Plate
28Seal, Cavity (Bottom)
29Seal, Cavity (Top)
