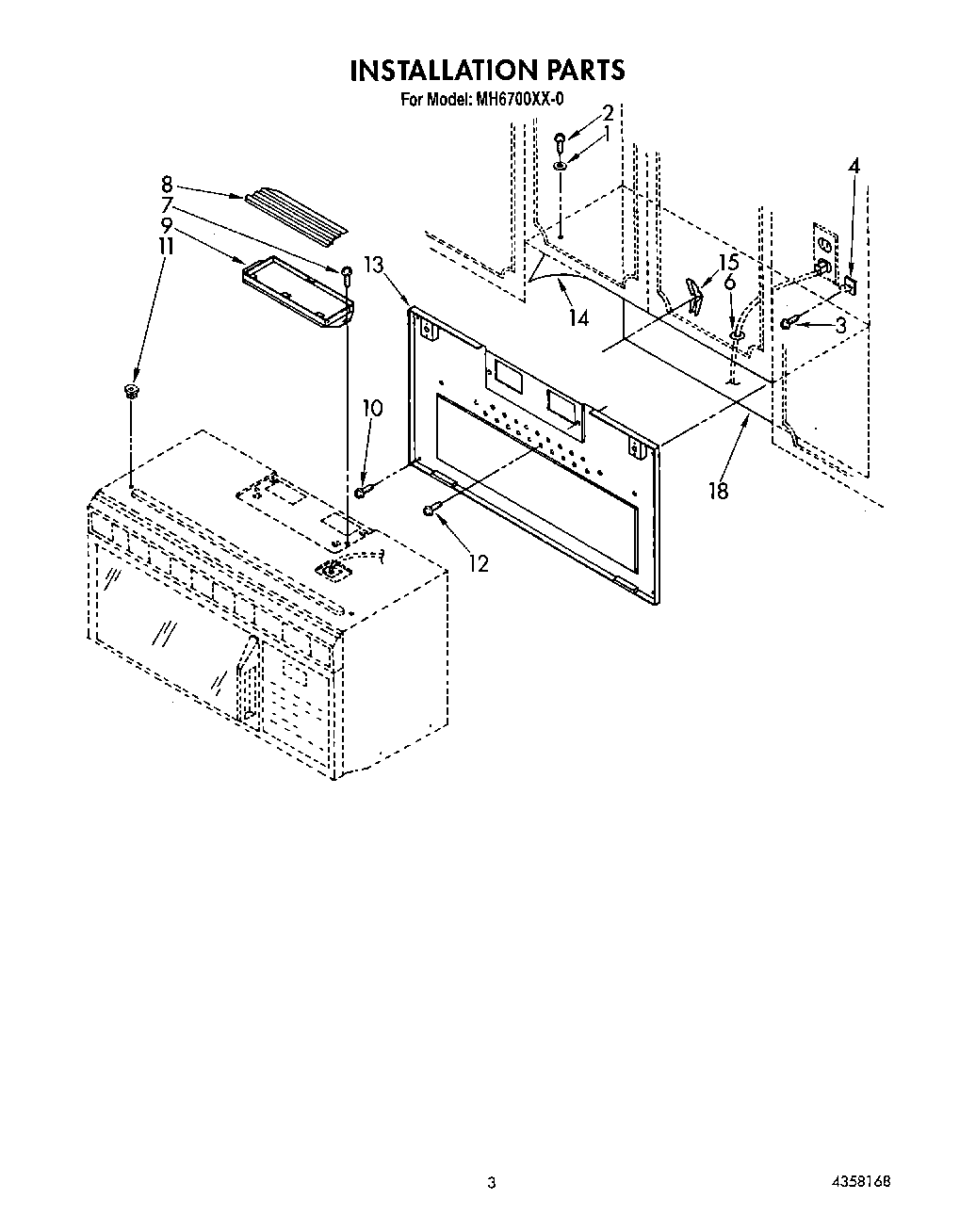

MH6700XX0 03 – INSTALLATION PARTS
Written by
in
MH6700XX0 03 – INSTALLATION PARTS
Products
Position
Product
1
Washer
2
Screw
3
WP98008545 Whirlpool Screw
4
8534021 Whirlpool Clamp
6
Bushing
7
Screw (2)
8
Exhaust Damper
9
Exhaust Adapter
10
WP8169704 Whirlpool Screw
11
Top Cabinet Nut (2)
12
Lag Screw
13
Mounting Plate Assy.
14
Top Cabinet Template
15
Toggle Bolt
18
Wall Template
←
