MH6701XW0 03 – INSTALLATION – Aparts

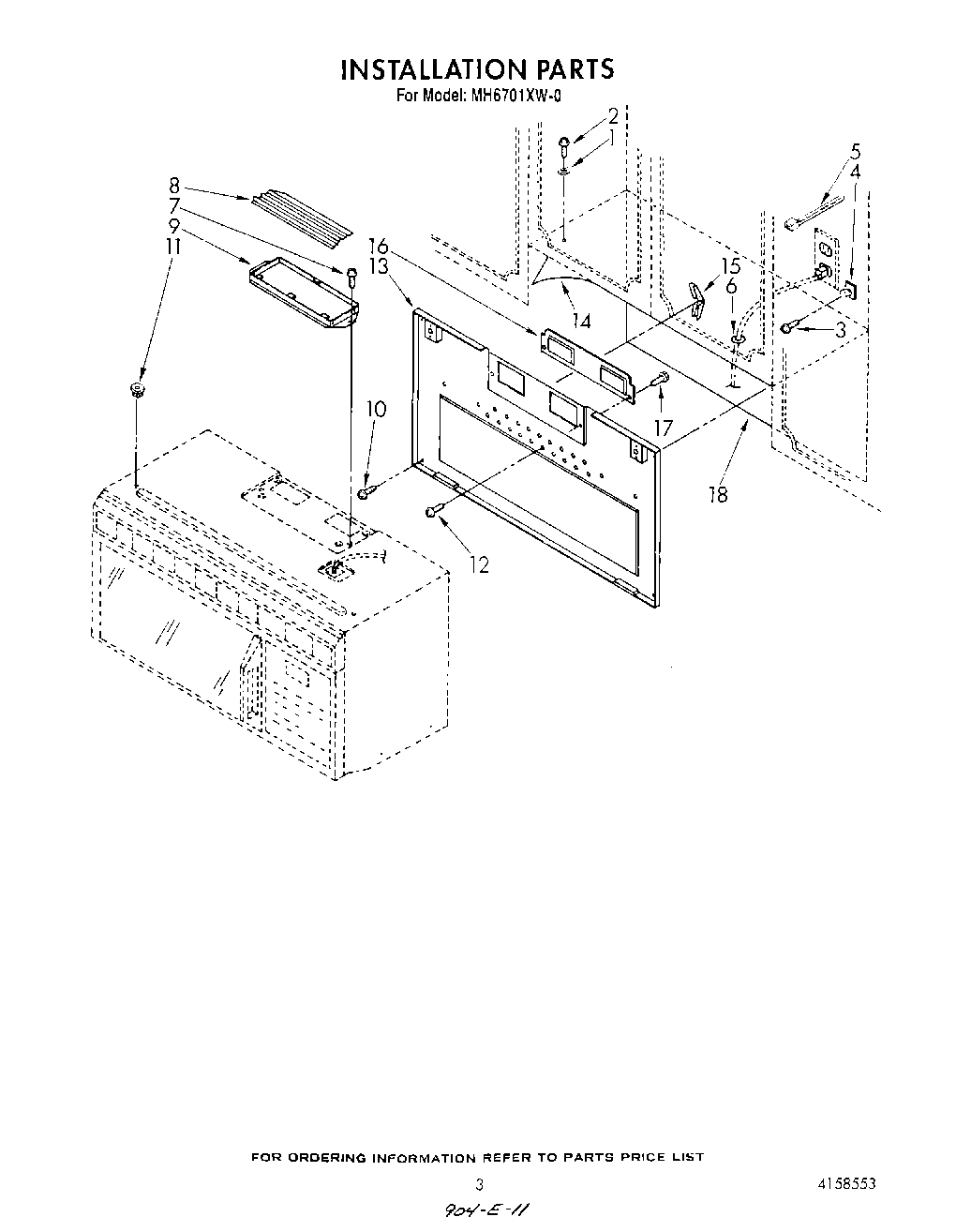

MH6701XW0 03 – INSTALLATION

Products

Position	Product
1	Washer
2	Screw
3	Screw (2)
4	Retainer Holder (2)
5	WPW10339879 Whirlpool Wire Tie
6	Cord Bushing
7	Screw (2)
8	Exhaust Damper
9	Exhaust Adapter
10	WP8169704 Whirlpool Screw
11	Top Cabinet Nut (2)
12	Lag Screw
13	Mounting Plate Assy.
14	Top Cabinet Template
15	Toggle Bolt
16	Vent Cover
17	Screw
18	Wall Template
