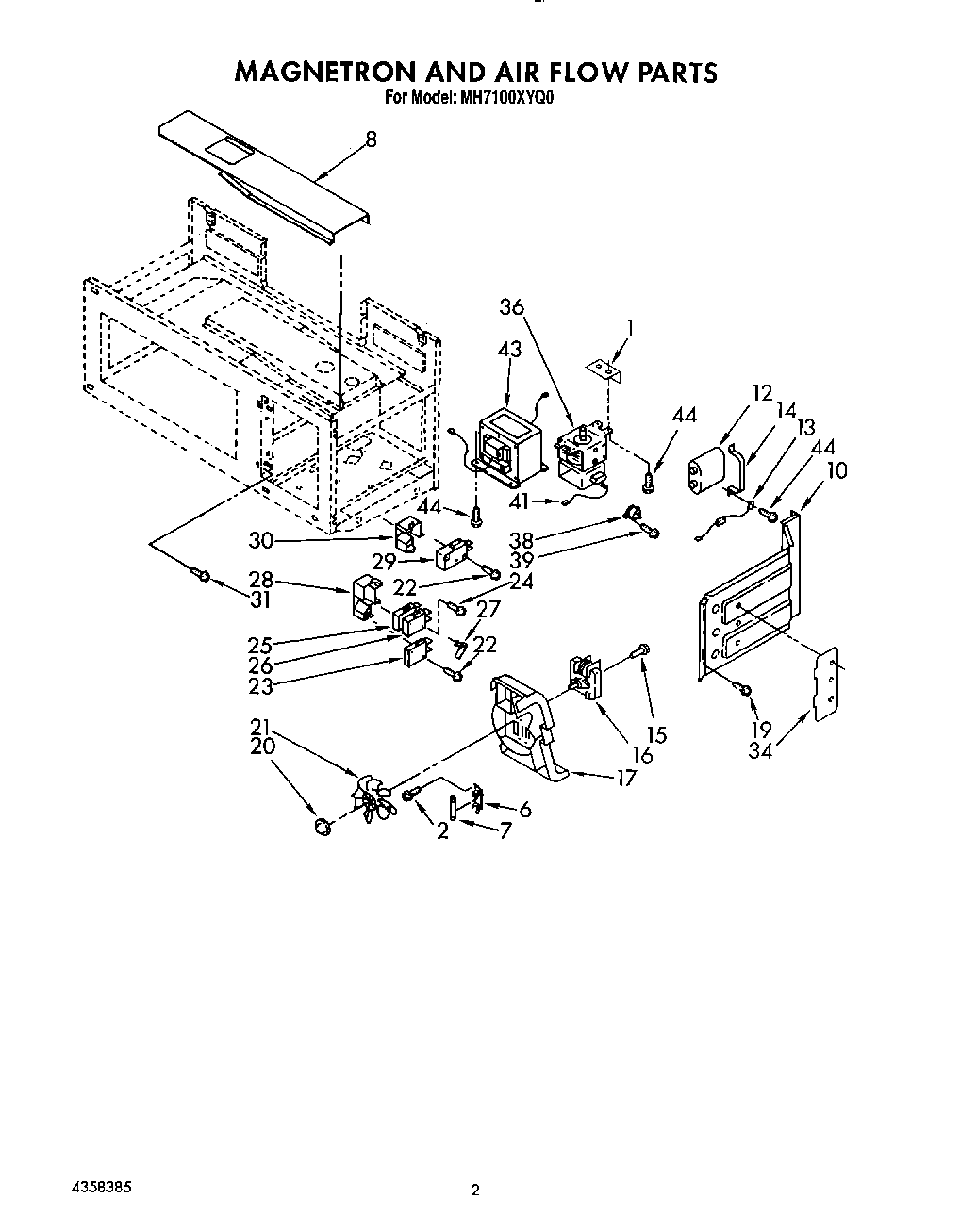

MH7100XYB0 02 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Bracket, Magnetron
2	W10815455 Whirlpool Screw
6	Holder, Fuse
7	Fuse
8	Motor Base
10	Air Guide (Side)
12	Capacitor – H.V.
13	Diode Cable
14	Capacitor Bracket
15	Screw
16	Fan Motor
17	Fan Cover Front
19	W11380570 Whirlpool Microwave Screw
20	Push Nut
21	Blower Fan
22	Screw (2)
23	4392027 Whirlpool Microwave Primary Switch
24	Screw
27	Lever, Switch
28	Latch Board Lower
30	Latch Board Upper
31	Special Screw (2)
34	Cover, Air
36	Magnatron
38	Thermostat
39	Screw
41	Lead Wire
43	Transformer
44	WP3400094 Whirlpool Screw
